EECS 487, Fall 2005

Project 2: Shading

Overview

In this project you will implement the OpenGL lighting model in 3 ways: first, by making the necessary calls to OpenGL to use its built-in lighting computations; second, by computing the OpenGL lighting model in software and passing the results to OpenGL in the form of pre-computed vertex colors; and last, by implementing lighting calculations in OpenGL Shading Language (GLSL), making use of programmable graphics hardware.  You will finish up by writing a few other shaders in GLSL.

You are given support code for this project and will need to

1. link to the jot library (the same as for project 1),
2. copy the project support code and edit the makefile to indicate jot installation information, and
3. implement the missing functionality.


For more information about jot, see the instructions given in project 1.


Support Code

Copy the project support code to your local machine using one of the following commands:
Remote session for Linux/Unix/SunOS/MacOS users:

  % scp -r red.engin.umich.edu:/afs/engin.umich.edu/class/perm/eecs487/proj2 .

                OR

  % rsync -av -e ssh red.engin.umich.edu:/afs/engin.umich.edu/class/perm/eecs487/proj2 .

Windows users can use set up an sftp session to red.engin.umich.edu and grab the files from the above path or, on (CAEN) machines with AFS mount, copy the files from:
    K:\perm\eecs487\proj2

The C++ source code files are: p2.C, shaders.H and shaders.C. The GLSL shader files are: simple.vp, simple.fp, lighting.vp, and lighting.fp. Read through these files to get familiar with them, then implement the following missing functionality:

OpenGL lighting:

• Implement the OGLShader class that has been partially defined for you. Fill in the parts that setup OpenGL state for rendering smooth shaded triangles with lighting enabled. Use the set of lights and their parameters that are stored in the VIEW class. Set the material properties in OpenGL according to the values stored in the Patch class (via its APPEAR base class). The comments in the provided code skeleton provide further information. [Note: the provided code does produce a rendered result that seems somewhat correct. That is because your main tasks (defining the lights and setting material properties) are already being done elsewhere in jot. However, they are not being done according to the project 2 spec! So implement the requested functionality in the OGLShader class, which will supersede the incorrect jot implementation.] 20 points.


Software lighting:

• Implement the OpenGL lighting model in software by completing the definition of the SWShader class. Compute the color of each vertex by taking into account the material properties of the Patch containing the vertex, as well as the global ambient light and the ambient, diffuse, and specular contributions of each of the active lights. Handle directional lights, point lights and spot lights. Follow the equations given in the red book (our text: The OpenGL Programming Guide) except that instead of using the halfway vector for specular lighting, use the actual reflection vector, as discussed in class. 20 points.


GLSL: (Note: for this part you need OpenGL 1.5 or 2.0.)

• Implement the OpenGL lighting calculations in GLSL shading language. Specifically, fill in the missing functionality in the file lighting.fp (a GLSL fragment shader). The provided vertex shader lighting.vp should be modified to compute a varying variable that represents the vertex position in eye space. The OpenGL code for loading the shader is provided in shader.C. As in the software case, use the reflection vector (not halfway vector) when computing the specular light contribution.  The only difference is that this time you will interpolate normals within triangles, resulting in Phong shading. 20 points.
• Implement a toon shader via a simple vertex program. [We will provide more specific instructions on this shortly.] 10 points.
• Implement a shader of your choice. For this, students can take ideas from books or online resources, and share ideas and code on the phorum, but what you turn in should have some original content. (Please make clear in comments which parts came from elsewhere.) [We will provide more specific instructions on this shortly.] 10 points.

Lighting design:

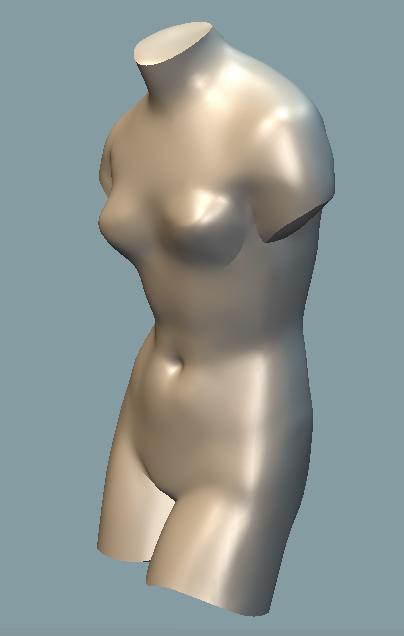

• Render an interesting picture and show it to the class. Choose a model (or models), and design a lighting setup (by modifying the lighting setup currently implemented in p2.C). Render the scene in any of your shaders, with the goal of making a nice picture. Grab the image, then post the picture on the phorum as an attachment. Please use the thread dedicated to project 2 images. You can post multiple images (as long as they are good :)  You are free to find models elsewhere (or make them). Sharing models with classmates is encouraged. [Note: lighting design is hard!]  5 points.


Write-up:

• Described below. 5 points.


Code quality:

1. Comment your code reasonably, particularly your design decisions and choice of approach.

2. Modularize your code: use a suitable number helper functions with descriptive names.
3. Use descriptive variable and function names: apply a suitable tradeoff between symbol-length and descriptiveness.

    Bottom line: Make your code readable! 10 points


Building and running the code:

Edit the provided Makefile to define the path to your jot directory. [On Windows, you must use a DOS prompt, and you must first run the setup.bat script in your jot directory.] Then you should be able to compile the program, as follows:

  % cd proj2
  % make

This results in an executable named p2 which takes model files as command-line arguments.


Models

A CVS repository of models has been set up on CAEN servers. To check out your own copies of the models, do the following:

  % cvs -d :ext:<your-uniqname>@red.engin.umich.edu:/afs/engin.umich.edu/class/perm/eecs487/cvsroot checkout -P models

Students are welcome to share models with the class by checking them into the repository. (Use binary mode in cvs: cvs add -kb mesh.obj). Please stick to model files that are in the public domain (or that you made yourself). Currently jot can read .obj files as well as native jot .sm files. Many 3D model formats can be converted to obj.

A copy of the models directory is also available on CAEN for those who don't want to check out their own copies. The path is:

    /afs/engin.umich.edu/class/perm/eecs487/models/   [Linux etc]
