EECS 487, Fall 2006

Project 3: Sketch

Overview

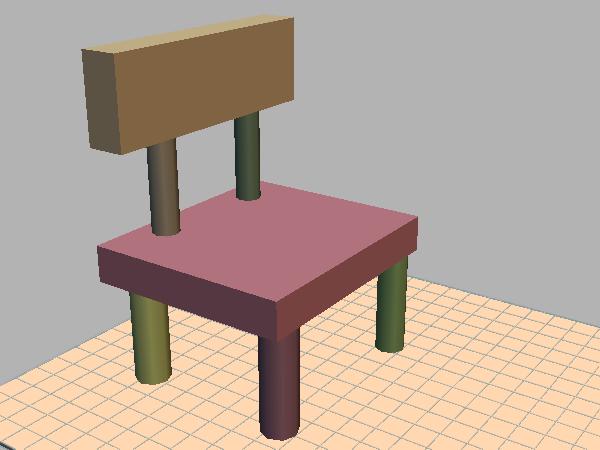

In this project you will implement a simple sketch-based modeling system. The basic system supports two kinds of primitives (or basic shapes): boxes and cylinders. Extended versions of the system support additional primitive types such as spheres, ducts, surfaces of revolution, and extruded shapes. Each primitive type is matched to a set of input gestures, which are 2D strokes drawn by the user. The user can thus create a 3D scene interactively by "sketching" various primitives.

In addition to sketching shapes with the left mouse button, the user can move existing shapes around using the middle button. Every shape is given a constraint that limits how the shape moves when grabbed by the user via the middle mouse button. Initially, each object is constrained to move in the plane of the surface on which it was created. The user can interactively define new constraints to move the object in a different plane, or along a given direction. Primitives are organized into a hierarchy via nested transforms. When a new primitive is sketched on top of an existing one, it is added to the scene as a "child" of the existing one, meaning it is defined in the coordinate system of the existing primitive. When the existing one is moved, all of its children automatically move with it. But when a child is moved, it moves independently.

This project is loosely based on the SIGGRAPH 1996 paper: SKETCH: An Interface for Sketching 3D Scenes. (We will see the video in class.)

You are given support code for this project and will need to

1. link to the jot library (the same as for projects 1 and 2),
2. copy the project support code, follow the instructions in the README file to compile, and
3. implement the missing functionality.


For more information about jot, see the instructions given in project 1.

Support Code

Copy the project support code to your local machine.  (On windows, you can execute the following commands using cygwin, which we recommend):

  % scp -r red.engin.umich.edu:/afs/engin.umich.edu/class/perm/eecs487/proj3 .

(Note the 'dot' at the end of line.) The above command overwrites all proj3 files, including any files that you may have made changes to. To copy 'old' versions of files while leaving the new untouched (sync-ing operation):

  % rsync -avz red.engin.umich.edu:/afs/engin.umich.edu/class/perm/eecs487/proj3 .

(Do this from the parent directory containing the proj3 subdirectory.)

Windows users can use set up an sftp session to red.engin.umich.edu and grab the files from the above path or, on (CAEN) machines with AFS mount, copy the files from:

    K:\perm\eecs487\proj3

Note: the above path depends on how CAEN space is mounted on your PC. See the project 3 README file if you need help mapping a network drive to connect to the course directory.

The C++ source code files are: axis.C axis.H floor.C floor.H node.C node.H node_manip.C node_manip.H p3.C sketch_pen.C sketch_pen.H. These provide useful functionality, but not everything is implemented. Read through these files to get familiar with them, then implement the following missing functionality (usually marked by the phrase "YOUR CODE HERE"). You are permitted to modify any of the provided source files as you see fit.

Basic primitives:

• Complete the unfinished parts of sketch_pen.C that handle the creation of boxes and cylinders. The provided support code already checks the user's input strokes and classifies them according to various types, such as straight line, tap, and curved stroke. In the function SketchPen::line_cb(), each straight line drawn by the user is compared to three "canonical" 3D axes (described below). When a canonical axis (projected to image space at the start of the user's stroke) and user-drawn 2D line are sufficiently parallel (in screen space), the support code creates a 3D line segment (using class AXIS, defined in axis.H)  that is parallel to the canonical axis and whose length corresponds to the user's stroke. The AXIS class keeps a list of all currently active axes in the scene. This list should be cleared every time a new primitive is finished, or when the user makes a "tap" gesture to cancel the current axes (see SketchPen::tap_cb()).

  In the function SketchPen::line_cb(), if no axes currently exist, the system should record the (world space) 3D point p and surface normal n corresponding to the start of the user's stroke, as well as the scene object G that contains p. (G is of type NODE, a subclass of GEL, which stands for "geometric element" and represents a generic object in jot that can be added to the sccene.)


• When the user draws 3 mutually perpendicular axes,  the function SketchPen::create_box() is called to create a box and add it to the scene.  The provided code shows how to create a new NODE N to represent the box, and add it to the scene as a child of G (meaning G's transform also affects N). However, the code does not assign the correct transform T to N. The desired end result is to map the canonical cube (created in the support code) to world space so that it matches the orientation and dimensions of the axes. E.g., you could define the desired box to be the minimum box that is aligned to the 3 axes and contains them. Alternately, you can make the simplifying assumption that the three axes either start or end close to p. This makes some input illegal that might otherwise be handled, but is probably easier to code. You can proceed either way. In any case,  T should be chosen so that, when combined with the transform from G's object space to world space,  the canonical cube is scaled, rotated, and translated to match the desired shape. The helper function SketchPen::obj_to_world() returns the matrix that maps from G's object space to world space, and SketchPen::world_to_obj() returns the inverse matrix.   15 points


• If the user draws 2 parallel axes instead of 3 perpendicular ones, the function SketchPen::create_cylinder() is called to create a cylinder. Complete the implementation of this function to create a cylinder that is parallel to the two axes (in world space), whose base is adjacent to p, whose height is the length of the first axis, and whose diameter is chosen so that the cylinder lies approximately between the two axes (in image space).  15 points

  Whether the user creates a box or cylinder, you should call the method NODE::set_plane_constraint() to restrict N to move in the plane perpendicular to n.  (This default plane constraint can be changed by the user, as described below.)


• The provided support code in SketchPen::line_cb() is not very smart about how it chooses the "canonical" axes x, y, and z: it just takes x = (1,0,0), y = (0,1,0), and z = (0,0,1). You should change the code in SketchPen::line_cb() so that y = n (the surface normal mentioned above), and x , y, and z form a right-handed orthonormal basis. Preferably, x and z should line up with the features of the parent node G. E.g., if G represents a cylinder, then at a point on the side of the cylinder, x and z would span the tangent plane, with x pointing along the length of the cylinder and z pointing across it. If G is a box, the directions should line up with the axes of the box.   10 points

Moving objects:

• The NodeManip class defined in node_manip.H is intended to let the user move objects around by grabbing them with the middle mouse button. Mouse down, motion and up events trigger callbacks to NodeManip::down(), NodeManip:move(), and NodeManip::up(), respectively. Finish the implementation of these functions to move objects according to the user's input stroke.    15 points.

  In NodeManip::down(), determine the node N (if any) grabbed by the user, and check whether N is constrained to move parallel to a given 3D plane (if NODE::constrain_plane() is true) or line (if NODE::constrain_line() is true). Then find the 3D point x on N's constraint plane or line that is closest to the current mouse location. To do this, construct a 3D line from the mouse location (use class Wline), and find its intersection with the constraint plane or line (using Wplane::intersect(Wline) or Wline::intersect(Wline)).

  In NodeManip::move(), find the new point x' on the constraint line or plane corresponding to the new mouse location. The desired translation is then x' - x. This translation should be expressed in the coordinate system of N's parent. Apply the translation by calling the method NODE::mult_by() (inherited from the base class GEOM). After applying the translation, replace the "old" location x with the new one:  x = x' (to be used the next time NodeManip::move() is called).


• Add the ability to define new constraints for nodes. If the user grabs a node when a single axis is active in the scene, in NodeManip::down() you should define a new constraint (via Node::set_line_constraint()) for the node that restricts it to move parallel to the axis direction. If there are 2 active axes, and they are not parallel, you should define a plane constraint for the node (via Node::set_plane_constraint()) restricting it to move parallel to the plane whose normal is the cross product of the two axes.  After creating a new node, always clear the set of active axes using AXIS::clear_axes().  15 points.

Renderer:

• Implement a custom renderer for your sketch system. Something based on toon shading and/or sketchy lines rendered along silhouettes and creases (or both) could be appropriate, but you are free to implement any rendering style you choose. It is okay to use GLSL. If you do, please mention it in your write-up so we can be sure to run your system on a suitable platform. 10 points.


Scene design:

• Use your system to create an interesting scene, including geometry, lighting design, and rendering style. Render the scene from an interesting viewpoint, grab a screen shot and and show the class by posting the image on the phorum as an attachment. Please use the thread dedicated to project 3 images. You can post multiple images. (Please include your images in the directory that you hand in as well.)  5 points.


Write-up:

• Described below. 5 points.


Code quality:

1. Comment your code reasonably, particularly your design decisions and choice of approach.

2. Modularize your code: use a suitable number helper functions with descriptive names.
3. Use descriptive variable and function names: apply a suitable tradeoff between symbol-length and descriptiveness.

    Bottom line: Make your code readable! 10 points


Extended system (up to 15 bonus points):


The following are optional, but can be attempted by ambitious students:

• Additional primitives. Implement additional primitives, mapping them to gestures of your choice. Possible ideas are: sphere, duct (i.e., a tube that follows the path of a curve in 3D), surface of revolution, and extruded shape defined from a planar shape. Corresponding gestures might be as follows. Sphere: draw a circle and tap the center. Duct: draw a circle, then draw a free-hand stroke from the center of the circle. Surface of revolution: draw an axis, then draw a "profile" curve indicating the shape to sweep around the axis. Extrude: first draw a planar shape by drawing its outline, then draw an axis perpendicular to it to define an inflated shape composed of 2 copies of the outline shape offset from each other, and joined with a ruled surface. For any primitive you contruct, consider assigning texture coordinates as well. These can be used in your renderer, either to apply conventional texture maps or for more elaborate effects like bump mapping (or both).


• Additional constraints. Add support for an additional type of motion constraint: rotation. If the user grabs a node with the middle button while a single axis is active in the scene, then the constraint should depend on the user's initial motion (the first few mouse motions while the cursor is still near the down point). If the motion is roughly parallel to the axis, use a line constraint as before. But if the motion is cross-wise to the axis, activate a rotation constraint that restricts the node to rotate around the rooted vector defined by the axis.
