Media
Click here for a Quicktime Movie of the LCD Operation and board layout

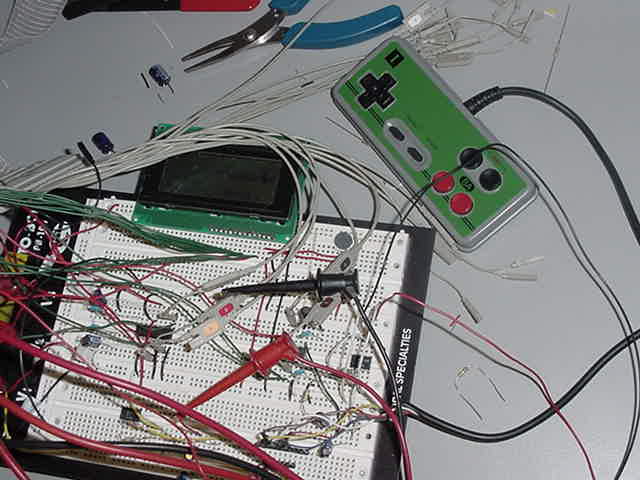

The project hardware. The input High-Pass filter is on the left, feeding into the ADC on the center top. The Ninendo 8 controller plugs into the pins on the lower left, with the DAC in the center bottom and the output High-Pass filter is the bottom left.

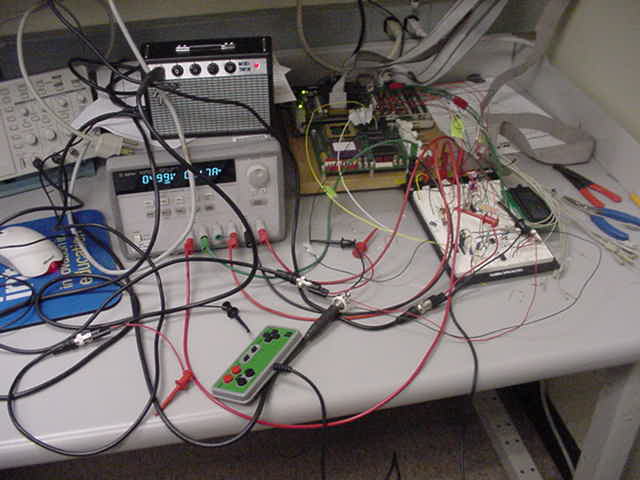

Here the setup is in full swing, with the power supply providing the +5V, -5V, +2.5V that we need, and the data lines are all hooked up to the FPGA test points
Here's a close up on the wired project. The alligator clips are letting us watch our input on the oscilliscope, and there are test points plugged in to watch the ADC and DAC conversions while they happen.
