Pictures of the Automated Bartender:

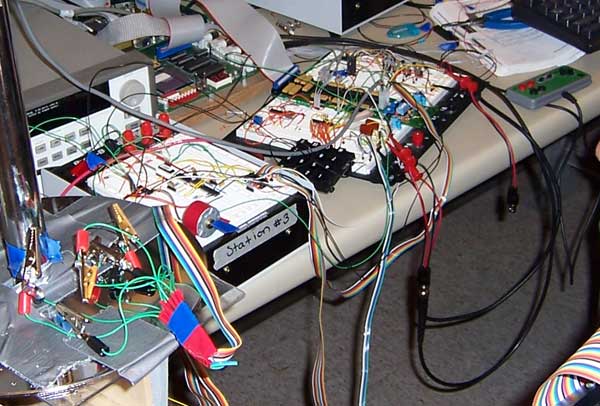

Here is the result of using MANY components
- MANY wires!

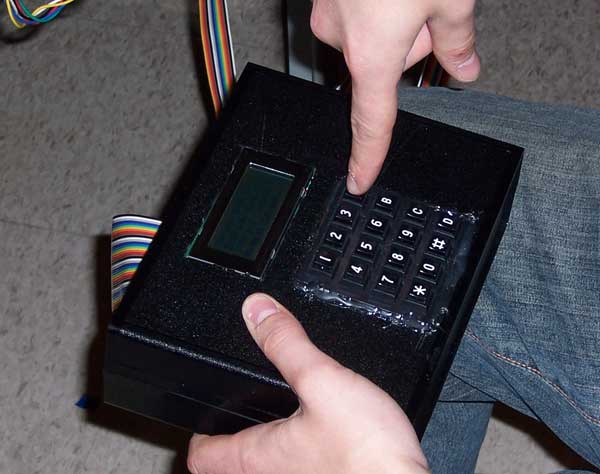

LCD and keypad:
It should be noted that we actually had to revert
to using a keypad plugged directly into the FPGA board
because the signals from the keypad sent over the
ribbon cable proved to be too noisy to be reliable.

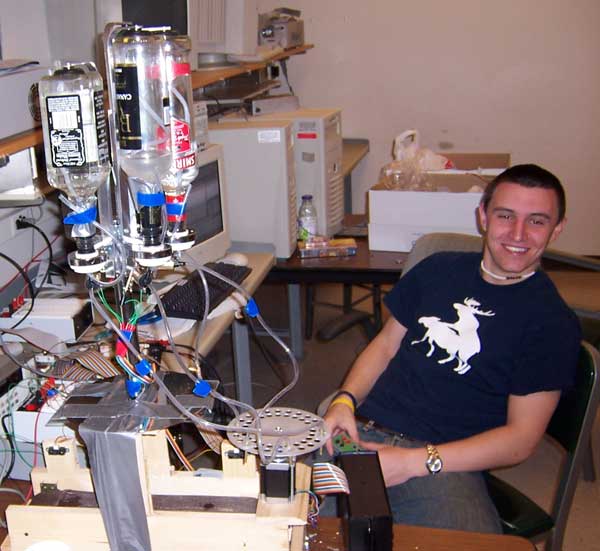

Here is our completed Automated Bartender.
