mlib::Wpt_list Class Reference
["World" Coordinate System]

A list of points in World coordinates. More...

#include <points.H>

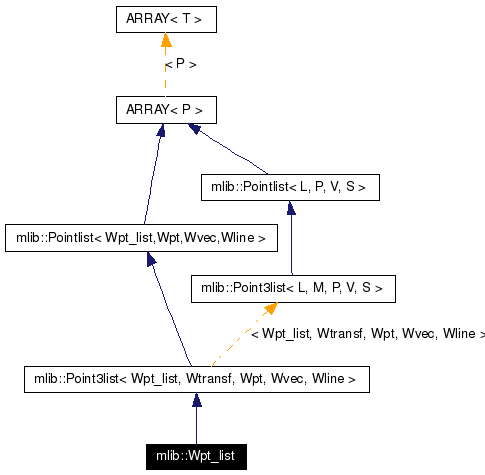

Inheritance diagram for mlib::Wpt_list:

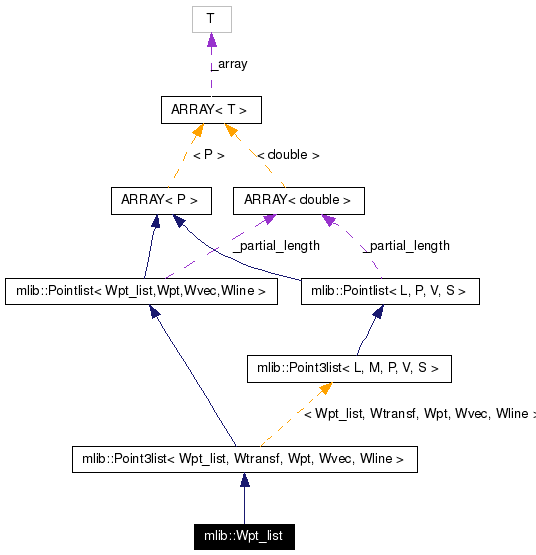

[legend]Collaboration diagram for mlib::Wpt_list:

[legend]List of all members.


Public Member Functions
	Point3list (int max=16)
	Default constructor. Creates an empty list with space for max points.
	Point3list (const ARRAY< Wpt > &p)
	Constructor that creates a list containing the points in ARRAY p.
	Point3list (const ARRAY< Wpt > &p, const Wtransf &t)
	Constructor that creates a list containing the points in ARRAY p transformed by matrix t.
double	winding_number (const Wpt &o, const Wvec &n) const
	Returns the winding number WRT the given point and direction.
void	xform (const Wtransf &t)
	Multiply the points by the transform.
bool	fix_endpoints (Wpta, Wptb)
	Adjust this polyline so that it runs from a to b (uses a combination of translation, rotation, and scaling).
	ARRAY (int m=0)
	ARRAY (CARRAY< P > &l)
int	num () const
bool	empty () const
bool	valid_index (int k) const
void	set_unique ()
P *	array ()
P &	operator[] (int j) const
P &	last () const
P &	first () const
void	begin_index ()
void	end_index ()
bool	is_indexing () const
virtual void	truncate (int n)
virtual void	realloc (int new_max=0)
virtual int	get_index (const P &el) const
bool	contains (const P &el) const
bool	add_uniquely (const P &el)
void	operator+= (const P &el)
ARRAY< P > &	operator+= (CARRAY< P > &b)
void	add (const P &p)
void	push (const P &p)
void	insert (int ind, int num)
bool	remove (int k)
bool	operator-= (const P &el)
void	operator-= (CARRAY< P > &l)
bool	rem (const P &p)
P	pop ()
bool	pull_index (int k)
bool	pull_element (const P &p)
ARRAY< P >	extract (int start, int n) const
virtual void	reverse ()
virtual void	sort (compare_func_t compare)
Constructors
	Wpt_list (int max=0)
	Wpt_list (const Point3list< Wpt_list, Wtransf, Wpt, Wvec, Wline > &p)
	Wpt_list (const Point3list< Wpt_list, Wtransf, Wpt, Wvec, Wline > &p, CWtransf &t)
Projection Functions
bool	project (XYpt_list &ret) const
	Project to screen coords, provided all Wpts lie in the view frustum.
bool	project (PIXEL_list &ret) const
	Project to screen coords, provided all Wpts lie in the view frustum.
Nearest Point Functions
int	closest_vertex (CPIXEL &p) const
	Returns index of the vertex of the polyline that is closest to the given screen-space point (distance measured in PIXELs). Skips vertices that lie outside the view frustum. Returns -1 if no vertices lie in the frustum.
Best-Fit Plane Functions
bool	get_best_fit_plane (Wplane &P) const
	Return the best-fit plane.
bool	get_plane (Wplane &P, double len_scale=1e-3) const
	Return the best-fit plane if the fit is good. Parameter 'len_scale' is multiplied by the length of the polyline to yield a threshold. The fit is considered good if every point lies within the threshold distance from the plane.
bool	is_planar (double len_scale=1e-3) const
	Return true if get_plane succeeds with the given threshold.
bool	get_plane_normal (Wvec &n)
	Convenience: compute the best-fit plane and return its normal.
Protected Member Functions
virtual void	set_index (const P &, int) const
virtual void	clear_index (const P &) const
virtual void	clear_ele (int)
virtual void	clear_range (int i, int j)
virtual void	append_ele (const P &el)
Protected Attributes
ARRAY< double >	_partial_length
P *	_array
int	_num
int	_max
bool	_unique
bool	_do_index
Related Functions
(Note that these are not member functions.)
Overloaded Arithmetic Operators
Wpt_list	operator * (CWtransf &x, CWpt_list &pts)
	Multiplies a transformation matrix by every point in the list.
Wpt_list	operator * (CWpt_list &pts, double t)
	Multiplies all the points in the list by a scalar constant.
Wpt_list	operator+ (CWpt_list &pts1, CWpt_list &pts2)
	Adds all the points in one list to the corresponding points in another list. The two lists must contain the same number of points.

Detailed Description

A list of points in World coordinates.

Definition at line 372 of file points.H.

Constructor & Destructor Documentation

mlib::Wpt_list::Wpt_list ( int max = 0 ) [inline]

Definition at line 379 of file points.H.

mlib::Wpt_list::Wpt_list ( const Point3list< Wpt_list, Wtransf, Wpt, Wvec, Wline > & p ) [inline]

Definition at line 382 of file points.H.
References mlib::Pointlist< L, P, V, S >::update_length().

mlib::Wpt_list::Wpt_list ( const Point3list< Wpt_list, Wtransf, Wpt, Wvec, Wline > & p,

CWtransf & t

) [inline]

Definition at line 391 of file points.H.
References mlib::Pointlist< L, P, V, S >::update_length().

Member Function Documentation

void ARRAY::add ( const P & p ) [inline, inherited]

Definition at line 306 of file support.H.
Referenced by mlib::PIXEL_list::operator=(), and mlib::NDCpt_list::operator=().

bool ARRAY::add_uniquely ( const P & el ) [inline, inherited]

Definition at line 289 of file support.H.

template<class L, class P, class V, class S>

MLIB_INLINE void mlib::Pointlist< L, P, V, S >::append ( Pointlist< L, P, V, S > * poly ) [inherited]

Appends all the points in poly onto the list.

Definition at line 542 of file pointlist.C.
References ARRAY::operator+=().

virtual void ARRAY::append_ele ( const P & el ) [inline, protected, virtual, inherited]

Definition at line 154 of file support.H.

P * ARRAY::array ( ) [inline, inherited]

Definition at line 189 of file support.H.

ARRAY::ARRAY ( CARRAY & l ) [inline, inherited]

Definition at line 177 of file support.H.

ARRAY::ARRAY ( int m = 0 ) [inline, inherited]

Definition at line 173 of file support.H.

template<class L, class P, class V, class S>

P mlib::Pointlist< L, P, V, S >::average ( ) const [inline, inherited]

Computes the average of all the point sin the list.

Definition at line 130 of file pointlist.H.
Referenced by GESTURE::center(), Bvert_list::center(), get_best_fit_plane(), GESTURE::is_ellipse(), and mlib::Pointlist< L, P, V, S >::spread().

template<class L, class P, class V, class S>

MLIB_INLINE double mlib::Pointlist< L, P, V, S >::avg_dist_to_seg ( const P & p,

int k

) const [inherited]

Computes the averge distance from point p to segment k in the list over the length of segment k.

Definition at line 216 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::length(), and ARRAY::num().

template<class L, class P, class V, class S>

double mlib::Pointlist< L, P, V, S >::avg_len ( ) const [inline, inherited]

Definition at line 170 of file pointlist.H.

void ARRAY::begin_index ( ) [inline, inherited]

Definition at line 206 of file support.H.

template<class L, class P, class V, class S>

virtual void mlib::Pointlist< L, P, V, S >::clear ( void ) [inline, virtual, inherited]

Reimplemented from ARRAY.
Definition at line 230 of file pointlist.H.
Referenced by BMESH::_merge(), UVMapping::add_face(), BMESH::changed(), LINE3D::clear(), mlib::PIXEL_list::operator=(), mlib::NDCpt_list::operator=(), BBOX::points(), mlib::Pointlist< L, P, V, S >::prepend(), project(), mlib::PIXEL_list::project_to_plane(), mlib::NDCpt_list::project_to_plane(), mlib::XYpt_list::project_to_plane(), ELLIPSE::rebuild(), mlib::EDGElist::reset(), BODY::triangulate(), and BMESH::triangulate().

virtual void ARRAY::clear_ele ( int ) [inline, protected, virtual, inherited]

Definition at line 143 of file support.H.

virtual void ARRAY::clear_index ( const P & ) const [inline, protected, virtual, inherited]

Definition at line 137 of file support.H.

virtual void ARRAY::clear_range ( int i,

int j

) [inline, protected, virtual, inherited]

Definition at line 146 of file support.H.

template<class L, class P, class V, class S>

MLIB_INLINE L mlib::Pointlist< L, P, V, S >::clone_piece ( int k1,

int k2

) const [inherited]

Make a copy of the point list from point k1 to point k2.

Parameters:

[in] k1 Index of first vertex.

[in] k2 Index of last vertex.

Warning:
Allocates memory for the copied list. Presumably the caller is responsible for deallocating this memory (using delete).

Definition at line 511 of file pointlist.C.
References ARRAY::num(), and ARRAY::valid_index().

template<class L, class P, class V, class S>

MLIB_INLINE P mlib::Pointlist< L, P, V, S >::closest ( const P & p ) const [inherited]

Definition at line 175 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::closest(), and mlib::Pointlist< L, P, V, S >::dist().

template<class L, class P, class V, class S>

MLIB_INLINE double mlib::Pointlist< L, P, V, S >::closest ( const P & p,

P & ,

int &

) const [inherited]

Definition at line 151 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::closest(), mlib::Pointlist< L, P, V, S >::length(), and ARRAY::num().

template<class L, class P, class V, class S>

MLIB_INLINE void mlib::Pointlist< L, P, V, S >::closest ( const P & p,

P & nearpt,

double & neardist,

int & seg_index

) const [inherited]

Computes everything about the point on the line closest to p.

Returns:
the point, its distance to the line, and the index of the point that starts its segment. (that is, the point is on the line segment between points [seg_index] and [seg_index+1])

Definition at line 112 of file pointlist.C.
References ARRAY::empty(), err_msg(), mlib::nearest_pt_to_line_seg(), and ARRAY::num().
Referenced by mlib::Pointlist< L, P, V, S >::closest(), mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::dist(), mlib::Pointlist< L, P, V, S >::invert(), and trim_endpt_overlap().

int mlib::Wpt_list::closest_vertex ( CPIXEL & p ) const

Returns index of the *vertex* of the polyline that is closest to the given screen-space point (distance measured in PIXELs). Skips vertices that lie outside the view frustum. Returns -1 if no vertices lie in the frustum.

Definition at line 596 of file points.C.
References ARRAY::_array, and ARRAY::_num.

bool ARRAY::contains ( const P & el ) const [inline, inherited]

Reimplemented in mlib::Point2list< L, P, V, S >.
Definition at line 283 of file support.H.

template<class L, class P, class V, class S>

double mlib::Pointlist< L, P, V, S >::dist ( const P & p ) const [inline, inherited]

Distance of the point to the nearest point on the polyline.

Definition at line 141 of file pointlist.H.
Referenced by ELLIPSE::avg_dist(), mlib::Pointlist< L, P, V, S >::closest(), mlib::Pointlist< L, P, V, S >::nearest_point(), and GESTURE::radius().

template<class L, class P, class V, class S>

MLIB_INLINE double mlib::Pointlist< L, P, V, S >::dist_to_seg ( const P & p,

int k

) const [inherited]

Computes the distance from point p to the nearest point on segment k in the list.

Definition at line 203 of file pointlist.C.
References mlib::nearest_pt_to_line_seg(), and ARRAY::num().

bool ARRAY::empty ( ) const [inline, inherited]

Definition at line 185 of file support.H.
Referenced by mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::average(), mlib::Pointlist< L, P, V, S >::closest(), mlib::Pointlist< L, P, V, S >::interpolate(), mlib::Pointlist< L, P, V, S >::interpolate_length(), mlib::Pointlist< L, P, V, S >::max_val(), mlib::Pointlist< L, P, V, S >::min_val(), project(), mlib::PIXEL_list::project_to_plane(), mlib::NDCpt_list::project_to_plane(), mlib::XYpt_list::project_to_plane(), and mlib::Pointlist< L, P, V, S >::spread().

void ARRAY::end_index ( ) [inline, inherited]

Definition at line 213 of file support.H.

ARRAY ARRAY::extract ( int start,

int n

) const [inline, inherited]

Definition at line 417 of file support.H.

P & ARRAY::first ( ) const [inline, inherited]

Definition at line 198 of file support.H.
Referenced by mlib::Point2list< L, P, V, S >::fix_endpoints().

bool mlib::Point3list< Wpt_list , Wtransf , Wpt , Wvec , Wline >::fix_endpoints ( Wpt a,

Wpt b

) [inherited]

Adjust this polyline so that it runs from a to b (uses a combination of translation, rotation, and scaling).
Pass input parameters by copying in case one is a current endpoint of the polyline

bool mlib::Wpt_list::get_best_fit_plane ( Wplane & P ) const

Return the best-fit plane.

Definition at line 620 of file points.C.
References ARRAY::_array, ARRAY::_num, mlib::Pointlist< L, P, V, S >::average(), mlib::Vec3< V >::is_null(), j, and mlib::Vec3< V >::normalized().
Referenced by get_plane().

virtual int ARRAY::get_index ( const P & el ) const [inline, virtual, inherited]

Definition at line 275 of file support.H.

bool mlib::Wpt_list::get_plane ( Wplane & P,

double len_scale = 1e-3

) const

Return the best-fit plane if the fit is good. Parameter 'len_scale' is multiplied by the length of the polyline to yield a threshold. The fit is considered good if every point lies within the threshold distance from the plane.

Definition at line 657 of file points.C.
References ARRAY::_array, ARRAY::_num, mlib::Pointlist< L, P, V, S >::_partial_length, mlib::Plane< PLANE, P, V, L >::dist(), get_best_fit_plane(), mlib::Pointlist< L, P, V, S >::length(), and ARRAY< T >::num().
Referenced by get_plane_normal(), and is_planar().

bool mlib::Wpt_list::get_plane_normal ( Wvec & n ) [inline]

Convenience: compute the best-fit plane and return its normal.

Definition at line 445 of file points.H.
References get_plane(), and mlib::Plane< PLANE, P, V, L >::normal().

template<class L, class P, class V, class S>

MLIB_INLINE V mlib::Pointlist< L, P, V, S >::get_tangent ( double s ) const [inherited]

Computes the interpolated tangent at s on the polyline.

Definition at line 413 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::interpolate_length(), ARRAY::num(), and mlib::Pointlist< L, P, V, S >::seg().

void ARRAY::insert ( int ind,

int num

) [inline, inherited]

Definition at line 319 of file support.H.

template<class L, class P, class V, class S>

MLIB_INLINE P mlib::Pointlist< L, P, V, S >::interpolate ( double s,

V * tan = 0,

int * segp = 0,

double * tp = 0

) const [inherited]

Computes interpolated values over the polyline.
Given interpolation parameter s varying from 0 to 1 along the polyline, return the corresponding point, and optionally the tangent, segment index, and segment paramter there.

Parameters:

[in] s Interpolation parameter. Varies from 0 to 1 (0 is the begining of the line and 1 is the end).

[out] tan Tanget of segment segp (pass NULL if you don't want it).

[out] segp Index of the segment that contains the interpolated position at s (pass NULL if you don't want it).

[out] tp Parameter varying from 0 to 1 representing the corresponding position of s on the segment segp (pass NULL if you don't want it).

Returns:
The interpolated point along on the polyline at s.

Definition at line 322 of file pointlist.C.
References ARRAY::empty(), mlib::Pointlist< L, P, V, S >::interpolate_length(), and mlib::Pointlist< L, P, V, S >::seg().
Referenced by get_section(), LINE3D::point(), mlib::Pointlist< L, P, V, S >::resample(), GESTURE::startup_time(), and trim_endpt_overlap().

template<class L, class P, class V, class S>

MLIB_INLINE void mlib::Pointlist< L, P, V, S >::interpolate_length ( double s,

int & seg,

double & t

) const [inherited]

Finds the segment containing the interpolation paramenter s and the position of s within that segment (as a parameter between 0 and 1).
Parameter s should lie in the range [0,1]. Returns the corresponding segment index, and the paramter t varying from 0 to 1 along that segment.

Parameters:

[in] s Interpolation parameter. Varies from 0 to 1 (0 is the begining of the line and 1 is the end).

[out] seg Index of the segment that contains the interpolated position at s.

[out] t Parameter varying from 0 to 1 representing the corresponding position of s on the segment seg.

Definition at line 363 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::_partial_length, ARRAY::empty(), ARRAY< T >::last(), ARRAY::num(), and ARRAY< T >::num().
Referenced by mlib::Pointlist< L, P, V, S >::get_tangent(), mlib::Pointlist< L, P, V, S >::interpolate(), and GESTURE::winding().

template<class L, class P, class V, class S>

MLIB_INLINE double mlib::Pointlist< L, P, V, S >::invert ( const P & p,

int seg

) const [inherited]

Definition at line 469 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::_partial_length, and mlib::Pointlist< L, P, V, S >::length().

template<class L, class P, class V, class S>

MLIB_INLINE double mlib::Pointlist< L, P, V, S >::invert ( const P & p ) const [inherited]

Definition at line 455 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::closest().

template<class L, class P, class V, class S>

bool mlib::Pointlist< L, P, V, S >::is_closed ( ) const [inline, inherited]

It's considered a closed loop if the first and last point are the same.

Definition at line 88 of file pointlist.H.
Referenced by mlib::Pointlist< L, P, V, S >::self_intersects().

bool ARRAY::is_indexing ( ) const [inline, inherited]

Definition at line 219 of file support.H.

bool mlib::Wpt_list::is_planar ( double len_scale = 1e-3 ) const [inline]

Return true if get_plane succeeds with the given threshold.

Definition at line 438 of file points.H.
References get_plane(), and mlib::Plane< PLANE, P, V, L >::is_valid().

template<class L, class P, class V, class S>

MLIB_INLINE bool mlib::Pointlist< L, P, V, S >::is_straight ( double len_scale = 1e-5 ) const [inherited]

Returns true if the points fall in a straight line.
len_scale * length() gives the threshold for how close points have to be to the proposed straight line to be accepted.
Definition at line 20 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::_partial_length, mlib::Pointlist< L, P, V, S >::length(), ARRAY< T >::num(), ARRAY::num(), and mlib::Pointlist< L, P, V, S >::pt().

P & ARRAY::last ( ) const [inline, inherited]

Definition at line 194 of file support.H.
Referenced by mlib::Point3list< L, M, P, V, S >::fix_endpoints(), mlib::Point2list< L, P, V, S >::fix_endpoints(), mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::is_closed(), and mlib::Pointlist< L, P, V, S >::resample().

template<class L, class P, class V, class S>

double mlib::Pointlist< L, P, V, S >::length ( ) const [inline, inherited]

Definition at line 168 of file pointlist.H.
Referenced by mlib::Pointlist< L, P, V, S >::avg_dist_to_seg(), mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::avg_len(), mlib::Pointlist< L, P, V, S >::closest(), get_plane(), mlib::Pointlist< L, P, V, S >::invert(), mlib::Pointlist< L, P, V, S >::is_straight(), LINE3D::length(), GESTURE::length(), mlib::Point2list< L, P, V, S >::ray_intersect(), and GESTURE::winding().

template<class L, class P, class V, class S>

P::value_type mlib::Pointlist< L, P, V, S >::max_val ( int i ) const [inherited]

Returns the max value, over the polyline, for the given component i.
Components are numbered starting at 0 and are in the same order that they are accessed throught the subscripting operator for the polyline's point type.
Definition at line 271 of file pointlist.C.
References ARRAY::empty(), err_msg(), max(), ARRAY::num(), and mlib::Pointlist< L, P, V, S >::pt().

template<class L, class P, class V, class S>

P::value_type mlib::Pointlist< L, P, V, S >::min_val ( int i ) const [inherited]

Returns the min value, over the polyline, for the given component i.
Components are numbered starting at 0 and are in the same order that they are accessed throught the subscripting operator for the polyline's point type.
Definition at line 251 of file pointlist.C.
References ARRAY::empty(), err_msg(), min(), ARRAY::num(), and mlib::Pointlist< L, P, V, S >::pt().

template<class L, class P, class V, class S>

MLIB_INLINE int mlib::Pointlist< L, P, V, S >::nearest_point ( const P & p ) const [inherited]

Finds the index of the nearest point in the point list to point p.

Definition at line 85 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::dist(), and ARRAY::num().

ARRAY& ARRAY::operator+= ( CARRAY & b ) [inline, inherited]

Definition at line 431 of file support.H.

void ARRAY::operator+= ( const P & el ) [inline, inherited]

Definition at line 298 of file support.H.
Referenced by mlib::Pointlist< L, P, V, S >::append().

void ARRAY::operator-= ( CARRAY & l ) [inline, inherited]

Definition at line 451 of file support.H.

bool ARRAY::operator-= ( const P & el ) [inline, inherited]

Definition at line 352 of file support.H.

P & ARRAY::operator[] ( int j ) const [inline, inherited]

Definition at line 190 of file support.H.

template<class L, class P, class V, class S>

double mlib::Pointlist< L, P, V, S >::partial_length ( int i ) const [inline, inherited]

Net length along the polyline at vertex i.

Definition at line 164 of file pointlist.H.

mlib::Point3list< Wpt_list , Wtransf , Wpt , Wvec , Wline >::Point3list ( const ARRAY< Wpt > & p,

const Wtransf & t

) [inline, inherited]

Constructor that creates a list containing the points in ARRAY p transformed by matrix t.

Definition at line 215 of file point3.H.
References mlib::Point3list< L, M, P, V, S >::xform().

mlib::Point3list< Wpt_list , Wtransf , Wpt , Wvec , Wline >::Point3list ( const ARRAY< Wpt > & p ) [inline, inherited]

Constructor that creates a list containing the points in ARRAY p.

Definition at line 211 of file point3.H.

mlib::Point3list< Wpt_list , Wtransf , Wpt , Wvec , Wline >::Point3list ( int max = 16 ) [inline, inherited]

Default constructor. Creates an empty list with space for max points.

Definition at line 207 of file point3.H.

P ARRAY::pop ( ) [inline, inherited]

Definition at line 357 of file support.H.

template<class L, class P, class V, class S>

MLIB_INLINE void mlib::Pointlist< L, P, V, S >::prepend ( Pointlist< L, P, V, S > * poly ) [inherited]

Prepends all the points in poly onto the list.

Definition at line 552 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::clear(), and ARRAY::num().

bool mlib::Wpt_list::project ( PIXEL_list & ret ) const

Project to screen coords, provided all Wpts lie in the view frustum.

Definition at line 583 of file points.C.
References project().

bool mlib::Wpt_list::project ( XYpt_list & ret ) const

Project to screen coords, provided all Wpts lie in the view frustum.

Definition at line 553 of file points.C.
References ARRAY::_array, ARRAY::_num, ARRAY< T >::add(), mlib::Pointlist< L, P, V, S >::clear(), ARRAY::empty(), mlib::NDCZpt::in_frustum(), and ARRAY< T >::realloc().
Referenced by project().

template<class L, class P, class V, class S>

P mlib::Pointlist< L, P, V, S >::pt ( int i ) const [inline, inherited]

Get the i^th point in the list.

Definition at line 56 of file pointlist.H.
Referenced by mlib::Point2list< L, P, V, S >::intersects_line(), mlib::Pointlist< L, P, V, S >::is_straight(), mlib::Pointlist< L, P, V, S >::max_val(), mlib::Pointlist< L, P, V, S >::min_val(), mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::seg(), mlib::Point3list< L, M, P, V, S >::winding_number(), and mlib::Point2list< L, P, V, S >::winding_number().

bool ARRAY::pull_element ( const P & p ) [inline, inherited]

Definition at line 383 of file support.H.

bool ARRAY::pull_index ( int k ) [inline, inherited]

Definition at line 366 of file support.H.

void ARRAY::push ( const P & p ) [inline, inherited]

Definition at line 309 of file support.H.

virtual void ARRAY::realloc ( int new_max = 0 ) [inline, virtual, inherited]

Definition at line 252 of file support.H.

bool ARRAY::rem ( const P & p ) [inline, inherited]

Definition at line 353 of file support.H.

bool ARRAY::remove ( int k ) [inline, inherited]

Definition at line 333 of file support.H.

template<class L, class P, class V, class S>

MLIB_INLINE void mlib::Pointlist< L, P, V, S >::resample ( int num_segs ) [inherited]

Resample with the desired number of segments:.

Definition at line 486 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::interpolate(), ARRAY::last(), and mlib::Pointlist< L, P, V, S >::update_length().

virtual void ARRAY::reverse ( ) [inline, virtual, inherited]

Definition at line 457 of file support.H.

template<class L, class P, class V, class S>

S mlib::Pointlist< L, P, V, S >::seg ( int i ) const [inline, inherited]

Get the i^th segment in the list.

Definition at line 65 of file pointlist.H.
Referenced by mlib::Pointlist< L, P, V, S >::get_tangent(), mlib::Pointlist< L, P, V, S >::interpolate(), mlib::Point2list< L, P, V, S >::intersects_seg(), and mlib::Pointlist< L, P, V, S >::self_intersects().

template<class L, class P, class V, class S>

double mlib::Pointlist< L, P, V, S >::segment_length ( int i ) const [inline, inherited]

Get the length of the i^th segment in the list.

Definition at line 62 of file pointlist.H.
Referenced by mlib::Pointlist< L, P, V, S >::update_length().

template<class L, class P, class V, class S>

MLIB_INLINE bool mlib::Pointlist< L, P, V, S >::self_intersects ( ) const [inherited]

Does O(n^2) check to see if any segment of the polyline intersects any other, not counting adjacent segments of course.

Definition at line 63 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::is_closed(), j, ARRAY::num(), and mlib::Pointlist< L, P, V, S >::seg().
Referenced by GESTURE::self_intersects().

virtual void ARRAY::set_index ( const P & ,

int

) const [inline, protected, virtual, inherited]

Definition at line 136 of file support.H.

void ARRAY::set_unique ( ) [inline, inherited]

Definition at line 187 of file support.H.

template<class L, class P, class V, class S>

virtual void mlib::Pointlist< L, P, V, S >::shift ( int p ) [inline, virtual, inherited]

Reimplemented from ARRAY.
Definition at line 235 of file pointlist.H.

virtual void ARRAY::sort ( compare_func_t compare ) [inline, virtual, inherited]

Definition at line 468 of file support.H.

template<class L, class P, class V, class S>

MLIB_INLINE double mlib::Pointlist< L, P, V, S >::spread ( ) const [inherited]

Max distance of any point to average().

Definition at line 227 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::average(), ARRAY::empty(), max(), and ARRAY::num().
Referenced by GESTURE::spread().

template<class L, class P, class V, class S>

MLIB_INLINE P mlib::Pointlist< L, P, V, S >::sum ( ) const [inherited]

Computes the sum of all the points in the list.

Definition at line 191 of file pointlist.C.
References ARRAY::num().
Referenced by mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::average(), and Bvert_list::sum().

template<class L, class P, class V, class S>

V mlib::Pointlist< L, P, V, S >::tan ( int i ) const [inline, inherited]

Returns a "tangent" direction at each vertex.
At the endpoints it is the direction of the ending segment. At internal vertices it is the average of the two segment directions.
Definition at line 72 of file pointlist.H.
Referenced by LINE3D::tangent().

template<class L, class P, class V, class S>

void mlib::Pointlist< L, P, V, S >::translate ( const V & vec ) [inline, inherited]

Translate all points in polyline by given vector.

Parameters:

[in] vec Vector that represents translation to be applied.

Definition at line 205 of file pointlist.H.
Referenced by mlib::Point2list< L, P, V, S >::fix_endpoints().

virtual void ARRAY::truncate ( int n ) [inline, virtual, inherited]

Definition at line 234 of file support.H.

template<class L, class P, class V, class S>

MLIB_INLINE void mlib::Pointlist< L, P, V, S >::update_length ( ) [inherited]

This must be called before the interpolation routines can work properly.
Definition at line 288 of file pointlist.C.
References mlib::Pointlist< L, P, V, S >::_partial_length, ARRAY< T >::clear(), ERR_LEV_SPAM, err_mesg(), ARRAY< T >::last(), ARRAY::num(), ARRAY< T >::realloc(), and mlib::Pointlist< L, P, V, S >::segment_length().
Referenced by GESTURE::add(), mlib::Point2list< L, P, V, S >::fix_endpoints(), get_section(), mlib::NDCpt_list::NDCpt_list(), mlib::PIXEL_list::operator=(), mlib::NDCpt_list::operator=(), mlib::PIXEL_list::PIXEL_list(), mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::Pointlist(), mlib::PIXEL_list::project_to_plane(), mlib::NDCpt_list::project_to_plane(), mlib::XYpt_list::project_to_plane(), Bvert_list::pts(), mlib::Pointlist< L, P, V, S >::resample(), mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::shift(), Wpt_list(), Bvert_list::wpts(), and mlib::Point3list< L, M, P, V, S >::xform().

bool ARRAY::valid_index ( int k ) const [inline, inherited]

Definition at line 186 of file support.H.
Referenced by mlib::Pointlist< L, P, V, S >::clone_piece().

template<class L, class P, class V, class S>

V mlib::Pointlist< L, P, V, S >::vec ( int i ) const [inline, inherited]

Get the vector from the i^th point in the list to the (i + 1)^th point in the list.

Definition at line 59 of file pointlist.H.
Referenced by mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::segment_length(), and mlib::Pointlist< NDCpt_list, NDCpt, NDCvec, NDCline >::tan().

double mlib::Point3list< Wpt_list , Wtransf , Wpt , Wvec , Wline >::winding_number ( const Wpt & o,

const Wvec & n

) const [inherited]

Returns the winding number WRT the given point and direction.
I.e., projects the polyline to the plane containing point 'o' and perpendicular to direction 'n', then computes the number of times the result winds around o in the CCW direction. For a closed polyline the result is an integer: e.g. +1 if it winds around once CCW, -1 if it winds once clockwise, and 0 if o is outside the projected polyline.

void mlib::Point3list< Wpt_list , Wtransf , Wpt , Wvec , Wline >::xform ( const Wtransf & t ) [inherited]

Multiply the points by the transform.

Friends And Related Function Documentation

Wpt_list operator * ( CWpt_list & pts,

double t

) [related]

Multiplies all the points in the list by a scalar constant.

Definition at line 473 of file points.H.

Wpt_list operator * ( CWtransf & x,

CWpt_list & pts

) [related]

Multiplies a transformation matrix by every point in the list.

Definition at line 463 of file points.H.

Wpt_list operator+ ( CWpt_list & pts1,

CWpt_list & pts2

) [related]

Adds all the points in one list to the corresponding points in another list. The two lists must contain the same number of points.

Definition at line 484 of file points.H.
