Lab Assignments
Lab reports should be turned in in lecture on the day they are due. See the online tutorials for information on using lab equipment.
| Grade Weight | Date Issued | Report Due | |
| Lab 0 Introduction, Equipment Handout | - | 9/8/2008 | no report |
| Lab 1 Non-Ideal Opamps | 15% | 9/8/2008 | 9/22/2008 |
| Lab 2 Active Filters | 15% | 9/22/2008 | 10/6/2008 |
| Lab 3 Perpetual LED (Part 1) (Part 2) | 15% | 10/6/2008 | 10/22/2008 |
| Lab 4 Single-Stage Amplifier [ lab4.mod ] | 15% | 10/27/2008 | 11/10/2008 |
| Lab 5 Three-Stage
Amplifier [ lab5.mod
] Report template [ doc ] |
25% | 11/10/2008 | 12/1/2008 |
| Lab 6 Differential Amplifier | 15% | 11/24/2008 | no report |
Lab Kit
Each student will receive a lab kit with the following components. Use this kit to complete the lab assignments. At the end of the semester, students may keep their kits - have fun!
| Quantity | Description | Supplier | Part Number |
| 1 | Storage box | Mouser | 866-A214 |
| 1 | Breadboard | Jameco | 20601 |
| 1 | CA3083 5-NPN transistor array | Newark | 06F2047 |
| 10 | 1N5711 Schottky Diode | Digi-Key | 497-2499-1-ND |
| 1 | HLMP-K155 Low-voltage LED | Digi-Key | 516-1312-ND |
| 4 | LM741 | Digi-Key | LM741CNFS-ND |
| 1 | PV36W103C01B00 10kOhm 25-turn potentiometer | Digi-Key | 490-2875-ND |
Components Available in Lab
These resistors are available in the lab.
| Ohm | Ohm | Ohm | kOhm | kOhm | kOhm | MOhm | ||
| 1.0 | 10 | 100 | 1.0 | 27 | 330 | 2.7 | ||
| 1.1 | 11 | 110 | 1.6 | 30 | 360 | 3.0 | ||
| 1.5 | 12 | 120 | 2.4 | 33 | 390 | 3.3 | ||
| 1.6 | 13 | 150 | 2.7 | 36 | 430 | 3.6 | ||
| 1.8 | 15 | 180 | 3.0 | 43 | 470 | 3.9 | ||
| 2.2 | 16 | 200 | 3.6 | 47 | 510 | 4.3 | ||
| 2.4 | 18 | 220 | 4.3 | 51 | 560 | 4.7 | ||
| 2.7 | 20 | 240 | 4.7 | 62 | 620 | 5.1 | ||
| 3.0 | 22 | 270 | 5.1 | 75 | 680 | 5.6 | ||
| 3.3 | 24 | 300 | 5.6 | 82 | 820 | 6.2 | ||
| 3.6 | 27 | 330 | 6.2 | 91 | 6.8 | |||
| 3.9 | 30 | 360 | 6.8 | 110 | 7.5 | |||
| 4.3 | 33 | 390 | 7.5 | 120 | 8.2 | |||
| 4.7 | 36 | 430 | 8.2 | 130 | 9.1 | |||
| 5.1 | 39 | 470 | 9.1 | 160 | 10 | |||
| 5.6 | 47 | 510 | 10 | 180 | ||||
| 6.2 | 68 | 560 | 11 | 200 | ||||
| 6.8 | 75 | 620 | 12 | 220 | ||||
| 7.5 | 82 | 680 | 13 | 270 | ||||
| 8.2 | 91 | 750 | 16 | 300 | ||||
| 910 | 18 | |||||||
| 22 | ||||||||
| 24 |
These capacitors are available in the lab. Tantalum and Electrolytic capacitors are polarized, meaning only positive voltages may be applied across the capacitor.
| pF | Type | nF | Type | uF | Type | ||
| 2.2 | Ceramic | 2.2 | Ceramic | 0.22 | Tantalum | ||
| 5 | Ceramic | 4.7 | Polyester Film | 0.47 | Tantalum | ||
| 10 | Ceramic | 10 | Ceramic | 1.0 | Electrolytic | ||
| 15 | Ceramic | 22 | Polyester Film | 2.2 | Electrolytic | ||
| 22 | Ceramic | 47 | Ceramic | 4.7 | Electrolytic | ||
| 27 | Ceramic | 82 | Polyester Film | 10 | Electrolytic | ||
| 30 | Ceramic | 100 | Polyester Film | 22 | Electrolytic | ||
| 33 | Ceramic | 100 | Electrolytic | 33 | Electrolytic | ||
| 39 | Ceramic | 47 | Electrolytic | ||||
| 47 | Ceramic | 220 | Electrolytic | ||||
| 56 | Ceramic | ||||||
| 68 | Ceramic | ||||||
| 82 | Ceramic | ||||||
| 150 | Ceramic | ||||||
| 180 | Ceramic | ||||||
| 270 | Ceramic | ||||||
| 330 | Ceramic | ||||||
| 390 | Ceramic | ||||||
| 470 | Ceramic | ||||||
| 820 | Ceramic |

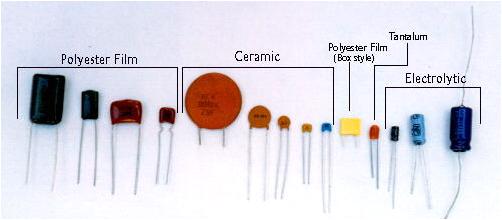

Types of capacitors - Tantalum and Electrolytic are polarized.
