Bvert Class Reference

#include <bvert.H>

Inheritance diagram for Bvert:

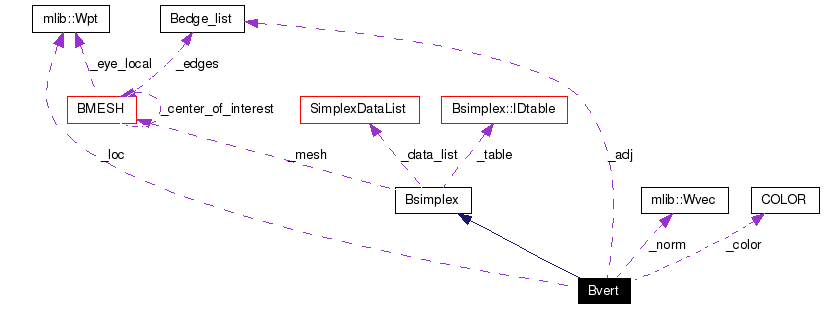

[legend]Collaboration diagram for Bvert:

[legend]List of all members.


Public Types
enum	{ VALID_COLOR_BIT = Bsimplex::NEXT_AVAILABLE_BIT, VALID_NORMAL_BIT, VALID_CCW_BIT, NON_MANIFOLD_BIT, VALID_NON_MANIFOLD_BIT, CREASE_BIT, VALID_CREASE_BIT, STRESSED_BIT, VALID_STRESSED_BIT, NEXT_AVAILABLE_BIT }
Public Member Functions
	Bvert (CWpt &p=mlib::Wpt::Origin())
virtual	~Bvert ()
CWpt &	loc () const
	position (location)
Wpt	wloc () const
	mesh->xf * loc()
NDCZpt	ndc () const
	NDCZ position.
PIXEL	pix () const
	position in mlib::PIXEL coords
int	degree () const
	number of edges
CCOLOR &	color () const
	color
double	alpha () const
	transparency
bool	has_color () const
CBedge_list &	get_adj () const
void	clear_flag02 ()
Wvec	compute_normal (const ARRAY< Bface * > &faces) const
CWvec &	norm () const
void	set_norm (Wvec n)
Wvec	norm (CSimplexFilter &f) const
	return a normal WRT faces accepted by the given filter:
Wvec	wnorm () const
void	get_normals (ARRAY< Wvec > &norms) const
void	set_loc (CWpt &p)
void	offset_loc (CWvec &v)
void	transform (CWtransf &xf)
void	set_color (CCOLOR &c, double a=1)
double	dist (CBvert *v)
	Distance to another vert (ignoring modeling transform):.
double	wdist (CBvert *v)
	Distance to another vert (computed in world space):.
Bedge *	e (int k) const
Bvert *	nbr (int k) const
Bvert *	nbr (CBedge *e) const
Bvert_list	get_nbrs (CBedge_list &edges) const
Wpt	nbr_loc (int k) const
Wpt	nbr_loc (CBedge *e) const
void	get_faces (ARRAY< Bface * > &ret) const
Bface_list	get_faces () const
void	get_quad_faces (ARRAY< Bface * > &ret) const
void	get_q_faces (ARRAY< Bface * > &ret) const
void	get_all_faces (ARRAY< Bface * > &ret) const
Bface_list	get_all_faces () const
int	num_tris () const
int	num_quads () const
Bedge *	lookup_edge (CBvert *v) const
bool	is_adjacent (CBvert *v) const
void	get_nbrs (ARRAY< Bvert * > &nbrs) const
Bedge_list	get_ccw_edges () const
Bvert_list	get_ccw_nbrs () const
void	get_manifold_edges (ARRAY< Bedge * > &ret) const
Bedge_list	get_manifold_edges () const
Bedge_list	strong_edges () const
double	avg_strong_len () const
void	get_primary_nbrs (ARRAY< Bvert * > &nbrs) const
void	get_p_nbrs (ARRAY< Bvert * > &nbrs) const
ARRAY< Bvert * >	get_p_nbrs () const
int	p_degree () const
void	get_q_nbrs (ARRAY< Bvert * > &q) const
Bedge *	next_border_edge_cw ()
Bvert *	next_border_vert_cw ()
void	operator+= (Bedge *e)
int	operator-= (Bedge *e)
bool	order_edges_ccw ()
double	star_sum_angles () const
double	star_area () const
double	min_dot () const
double	min_edge_len () const
double	avg_edge_len () const
Wpt	centroid () const
Wpt	area_centroid () const
Wpt	qr_centroid () const
Wvec	qr_delt () const
BMESHcurvature_data::curv_tensor_t	curv_tensor () const
BMESHcurvature_data::diag_curv_t	diag_curv () const
double	k1 () const
double	k2 () const
Wvec	pdir1 () const
Wvec	pdir2 () const
BMESHcurvature_data::dcurv_tensor_t	dcurv_tensor () const
int	degree (CSimplexFilter &f) const
int	crease_degree () const
int	border_degree () const
int	polyline_degree () const
int	stressed_degree () const
int	multi_degree () const
bool	is_border () const
bool	is_polyline_end () const
bool	is_crease_end () const
bool	is_stressed () const
bool	is_crease () const
Wpt	eye_local () const
	camera (eye) location in local coordinates:
Wvec	eye_vec () const
	unit length vector to camera in local coordinates
double	eye_vec_dot_norm () const
bool	is_front_facing () const
	returns true if surface normal (ignoring creases) points toward camera:
bool	is_sharp_point (double sharpness=M_PI/2)
bool	is_non_manifold () const
bool	is_manifold () const
int	face_degree (CSimplexFilter &f) const
virtual void	geometry_changed ()
virtual void	normal_changed ()
virtual void	degree_changed ()
virtual void	star_changed ()
virtual void	crease_changed ()
virtual void	color_changed ()
virtual int	dim () const
virtual int	index () const
virtual bool	view_intersect (CNDCpt &, Wpt &, double &, double &, Wvec &n) const
virtual Bface *	get_face () const
virtual bool	on_face (CBface *f) const
virtual void	project_barycentric (CWpt &, mlib::Wvec &bc) const
virtual void	bc2pos (CWvec &, mlib::Wpt &pos) const
virtual Bsimplex *	bc2sim (CWvec &) const
virtual Bsimplex_list	neighbors () const
virtual bool	local_search (Bsimplex &end, Wvec &final_bc, CWpt &target, mlib::Wpt &reached, Bsimplex repeater=0, int iters=30)
virtual NDCpt	nearest_pt_ndc (mlib::CNDCpt &p, mlib::Wvec &bc, int &is_on_simplex) const
virtual Wpt	nearest_pt (mlib::CWpt &p, mlib::Wvec &bc, bool &is_on_simplex) const
void	set_mesh (BMESH *mesh)
BMESH *	mesh () const
uint	key () const
uint	flag () const
void	clear_flag ()
void	set_flag (uchar b=1)
void	inc_flag (uint i)
bool	is_set (uint b) const
bool	is_clear (uint b) const
void	clear_bit (uint b)
void	set_bit (uint b, int x=1)
bool	is_selected () const
SimplexData *	find_data (uint key) const
SimplexData *	find_data (Cstr_ptr &s) const
SimplexData *	find_data (void *key) const
void	add_simplex_data (SimplexData *sd)
void	rem_simplex_data (SimplexData *sd)
const SimplexDataList *	data_list () const
virtual void	notify_split (Bsimplex *new_simp)
virtual void	notify_xform (CWtransf &xf)
Wpt	bc2pos (mlib::CWvec &bc) const
Wpt &	project_to_simplex (mlib::CWpt &pos, mlib::Wpt &ret)
virtual bool	near_point (CNDCpt &p, mlib::Wpt &hit) const
Bsimplex *	walk_to_target (CWpt &target, CSimplexFilter &filter=SimplexFilter()) const
Bsimplex *	walk_to_target (CWpt &target, Wpt &near_pt, Wvec &near_bc, CSimplexFilter &filter=SimplexFilter()) const
double	dist (CWpt &p) const
double	dist (CWpt &p, mlib::Wvec &bc) const
virtual Wpt	nearest_pt (mlib::CWpt &p, mlib::Wvec &bc) const
virtual Wpt	nearest_pt (mlib::CWpt &p) const
virtual bool	on_face (const Bface *f) const =0
Static Public Member Functions
static Bsimplex *	lookup (uint k)
static void	clamp_barycentric (Wvec &bc)
Protected Types
enum	{ FLAG_MASK = ((1 << FLAG_BITS) - 1) }
Protected Member Functions
void	set_normal ()
uint	generate_key ()
Static Protected Member Functions
static uint	mask (uint b)
Protected Attributes
Wpt	_loc
Bedge_list	_adj
COLOR	_color
double	_alpha
Wvec	_norm
uint	_key
uint	_flag
BMESH *	_mesh
SimplexDataList *	_data_list
Static Protected Attributes
static IDtable	_table
Friends
ostream &	operator<< (ostream &os, CBvert &v)
istream &	operator>> (istream &is, Bvert &v)
STDdstream &	operator<< (STDdstream &d, CBvert &v)
STDdstream &	operator>> (STDdstream &d, Bvert &v)
Related Functions
(Note that these are not member functions.)
Patch *	get_patch (CBsimplex *s)
	Returns the Patch of a Bsimplex.
Patch *	get_ctrl_patch (CBsimplex *s)
	Similar to get_patch(CBsimplex*), but returns the control Patch.

Detailed Description

Definition at line 17 of file bvert.H.

Member Enumeration Documentation

anonymous enum

Enumerator:

VALID_COLOR_BIT

VALID_NORMAL_BIT

VALID_CCW_BIT

NON_MANIFOLD_BIT

VALID_NON_MANIFOLD_BIT

CREASE_BIT

VALID_CREASE_BIT

STRESSED_BIT

VALID_STRESSED_BIT

NEXT_AVAILABLE_BIT

Reimplemented from Bsimplex.
Definition at line 21 of file bvert.H.

anonymous enum [protected, inherited]

Enumerator:

FLAG_MASK

Definition at line 265 of file bsimplex.H.

Constructor & Destructor Documentation

Bvert::Bvert ( CWpt & p = mlib::Wpt::Origin() ) [inline]

Definition at line 35 of file bvert.H.

Bvert::~Bvert ( ) [virtual]

Definition at line 9 of file bvert.C.
References _adj, Bsimplex::_mesh, degree(), MeshGlobal::deselect(), Bsimplex::is_selected(), ARRAY< T >::last(), and BMESH::remove_edge().

Member Function Documentation

void Bsimplex::add_simplex_data ( SimplexData * sd ) [inherited]

Definition at line 90 of file bsimplex.C.
References Bsimplex::_data_list, ARRAY< T >::add(), Bsimplex::find_data(), and SimplexData::id().
Referenced by SimplexData::set().

double Bvert::alpha ( ) const [inline]

transparency

Definition at line 47 of file bvert.H.
References _alpha.
Referenced by VertColorStripCB::faceCB(), SmoothShadeStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), StripTexCoordsCB2::faceCB(), FlatShadeStripCB::faceCB(), StripTexCoordsCB3::faceCB(), and CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB().

Wpt Bvert::area_centroid ( ) const

Definition at line 696 of file bvert.C.
References SimplexArray< L, T >::any_satisfy(), Bedge::avg_area(), e(), ARRAY< T >::empty(), SimplexArray< L, T >::filter(), get_manifold_edges(), get_nbrs(), loc(), nbr_loc(), and ARRAY< T >::num().

double Bvert::avg_edge_len ( ) const [inline]

Definition at line 284 of file bvert.H.
References _adj, and Bedge_list::avg_len().

double Bvert::avg_strong_len ( ) const [inline]

Definition at line 213 of file bvert.H.
References Bedge_list::avg_len(), and strong_edges().

Wpt Bsimplex::bc2pos ( mlib::CWvec & bc ) const [inline, inherited]

Definition at line 146 of file bsimplex.H.
References Bsimplex::bc2pos().

virtual void Bvert::bc2pos ( CWvec & ,

mlib::Wpt & pos

) const [inline, virtual]

Implements Bsimplex.
Definition at line 421 of file bvert.H.
References _loc.

virtual Bsimplex* Bvert::bc2sim ( CWvec & ) const [inline, virtual]

Implements Bsimplex.
Definition at line 423 of file bvert.H.

int Bvert::border_degree ( ) const [inline]

Definition at line 316 of file bvert.H.
References degree().
Referenced by get_ccw_edges(), is_border(), and LoopLoc::limit_normal().

Wpt Bvert::centroid ( ) const

Definition at line 675 of file bvert.C.
References SimplexArray< L, T >::any_satisfy(), ARRAY< T >::empty(), SimplexArray< L, T >::filter(), get_manifold_edges(), get_nbrs(), loc(), nbr_loc(), and ARRAY< T >::num().

static void Bsimplex::clamp_barycentric ( Wvec & bc ) [inline, static, inherited]

Definition at line 162 of file bsimplex.H.
References max(), and mlib::Vec3< V >::set().
Referenced by Bsimplex::project_to_simplex().

void Bsimplex::clear_bit ( uint b ) [inline, inherited]

Definition at line 103 of file bsimplex.H.
References Bsimplex::_flag, and Bsimplex::mask().
Referenced by Ledge::crease_changed(), crease_changed(), degree_changed(), Lface::delete_subdiv_elements(), Ledge::delete_subdiv_elements(), Lvert::delete_subdiv_vert(), MeshGlobal::deselect(), Bedge::faces_changed(), Bface::geometry_changed(), Bface::make_primary(), LMESH::mark_all_dirty(), Lvert::mark_dirty(), Lvert::mask_changed(), Ledge::mask_changed(), normal_changed(), Bedge::normal_changed(), LMESH::rem_dirty_vert(), Bsimplex::set_bit(), Lvert::set_corner(), Ledge::set_crease(), star_changed(), Ledge::subdiv_color_changed(), Lvert::subdiv_loc_changed(), Ledge::subdiv_loc_changed(), Lvert::subdiv_vert_deleted(), Ledge::subdiv_vert_deleted(), and LMESH::update_subdivision().

void Bsimplex::clear_flag ( ) [inline, inherited]

Definition at line 92 of file bsimplex.H.
References Bsimplex::_flag, and Bsimplex::FLAG_MASK.
Referenced by Bface_list::clear_edge_flags(), clear_flag02(), Bedge::clear_flag02(), Bface_list::clear_vert_flags(), Bedge_list::clear_vert_flags(), BMESH::get_enclosed_verts(), get_parent_faces(), and Bsimplex::set_flag().

void Bvert::clear_flag02 ( ) [inline]

Definition at line 55 of file bvert.H.
References _adj, Bsimplex::clear_flag(), and Bedge_list::clear_flag02().
Referenced by Bvert_list::clear_flag02().

CCOLOR& Bvert::color ( ) const [inline]

color

Definition at line 46 of file bvert.H.
References _color.
Referenced by VertColorStripCB::faceCB(), SmoothShadeStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), StripTexCoordsCB2::faceCB(), FlatShadeStripCB::faceCB(), StripTexCoordsCB3::faceCB(), CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB(), LoopColor::get_val(), BMESH::operator=(), BMESH::put_colors(), and BMESH::write_colors().

virtual void Bvert::color_changed ( ) [inline, virtual]

Reimplemented in Lvert.
Definition at line 370 of file bvert.H.
References Bsimplex::set_bit(), and VALID_COLOR_BIT.
Referenced by Lvert::color_changed(), and set_color().

Wvec Bvert::compute_normal ( const ARRAY< Bface * > & faces ) const

Referenced by norm(), and set_normal().

virtual void Bvert::crease_changed ( ) [inline, virtual]

Reimplemented in Lvert.
Definition at line 369 of file bvert.H.
References Bsimplex::clear_bit(), and VALID_CREASE_BIT.
Referenced by Lvert::crease_changed(), Bedge::crease_changed(), operator+=(), and operator-=().

int Bvert::crease_degree ( ) const [inline]

Definition at line 315 of file bvert.H.
References degree().
Referenced by is_crease(), and is_crease_end().

BMESHcurvature_data::curv_tensor_t Bvert::curv_tensor ( ) const

Definition at line 866 of file bvert.C.
References Bsimplex::_mesh, BMESHcurvature_data::curv_tensor(), and BMESH::curvature().

const SimplexDataList* Bsimplex::data_list ( ) const [inline, inherited]

Definition at line 132 of file bsimplex.H.
References Bsimplex::_data_list.
Referenced by num_data().

BMESHcurvature_data::dcurv_tensor_t Bvert::dcurv_tensor ( ) const

Definition at line 914 of file bvert.C.
References Bsimplex::_mesh, BMESH::curvature(), and BMESHcurvature_data::dcurv_tensor().
Referenced by MSLDStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), and CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB().

int Bvert::degree ( CSimplexFilter & f ) const [inline]

Definition at line 313 of file bvert.H.
References _adj, and SimplexArray< L, T >::num_satisfy().

int Bvert::degree ( ) const [inline]

number of edges

Definition at line 45 of file bvert.H.
References _adj, and ARRAY< T >::num().
Referenced by VertDegreeFilter::accept(), border_degree(), EdgeStrip::build_ccw_boundaries(), EdgeStrip::build_with_tips(), Lvert::color_changed(), crease_degree(), get_all_faces(), get_ccw_edges(), Bedge::is_chain_tip(), LoopLoc::limit_normal(), Lvert::mask_changed(), min_dot(), multi_degree(), Bface::ndc_walk(), EdgeStrip::next_edge(), order_edges_ccw(), p_degree(), polyline_degree(), rewind_cw(), CatmullClarkCalc< Wpt >::smooth_subdiv_val(), BMESH::split_faces(), stressed_degree(), HybridCalc< Wpt >::subdiv_val(), CatmullClarkCalc< Wpt >::subdiv_val(), Bedge::swapable(), BMESH::try_collapse_edge(), vert_normal(), Bface::vert_normal(), ~Bvert(), and Lvert::~Lvert().

void Bvert::degree_changed ( ) [virtual]

Reimplemented in Lvert.
Definition at line 598 of file bvert.C.
References Bsimplex::clear_bit(), normal_changed(), star_changed(), and VALID_STRESSED_BIT.
Referenced by Lvert::degree_changed(), operator+=(), and operator-=().

BMESHcurvature_data::diag_curv_t Bvert::diag_curv ( ) const

Definition at line 874 of file bvert.C.
References Bsimplex::_mesh, BMESH::curvature(), and BMESHcurvature_data::diag_curv().

virtual int Bvert::dim ( ) const [inline, virtual]

Implements Bsimplex.
Definition at line 397 of file bvert.H.

double Bsimplex::dist ( CWpt & p,

mlib::Wvec & bc

) const [inline, inherited]

Definition at line 216 of file bsimplex.H.
References mlib::Point3< P, V >::dist(), and Bsimplex::nearest_pt().

double Bsimplex::dist ( CWpt & p ) const [inline, inherited]

Definition at line 215 of file bsimplex.H.
References mlib::Point3< P, V >::dist(), and Bsimplex::nearest_pt().
Referenced by Bface::contains().

double Bvert::dist ( CBvert * v ) [inline]

Distance to another vert (ignoring modeling transform):.

Definition at line 111 of file bvert.H.
References loc().
Referenced by closest_vert().

Bedge* Bvert::e ( int k ) const [inline]

Definition at line 119 of file bvert.H.
References _adj.
Referenced by area_centroid(), avg_strong_len(), CatmullClarkCalc< Wpt >::crease_centroid(), UVdata::discontinuity_degree(), get_all_faces(), get_ccw_edges(), get_face(), BMESH::grow_mesh_equivalence_class(), is_adjacent_tri(), leading_ccw_edge(), leading_faces(), Bedge::local_search(), Lvert::mask_changed(), min_dot(), EdgeStrip::next_edge(), and qr_centroid().

Wpt Bvert::eye_local ( ) const

camera (eye) location in local coordinates:

Definition at line 654 of file bvert.C.
References VIEW::eye(), BMESH::eye_local(), and Bsimplex::mesh().
Referenced by eye_vec(), and is_front_facing().

Wvec Bvert::eye_vec ( ) const [inline]

unit length vector to camera in local coordinates

Definition at line 346 of file bvert.H.
References eye_local(), loc(), and mlib::Vec3< V >::normalized().
Referenced by eye_vec_dot_norm().

double Bvert::eye_vec_dot_norm ( ) const [inline]

dot product of unit length vector toward camera and surface normal (ignoring creases):
Definition at line 350 of file bvert.H.
References eye_vec(), and norm().

int Bvert::face_degree ( CSimplexFilter & f ) const

Definition at line 471 of file bvert.C.
References get_faces(), and SimplexArray< L, T >::num_satisfy().
Referenced by LoopLoc::limit_normal().

SimplexData* Bsimplex::find_data ( void * key ) const [inline, inherited]

Definition at line 123 of file bsimplex.H.
References Bsimplex::find_data().

SimplexData* Bsimplex::find_data ( Cstr_ptr & s ) const [inline, inherited]

Definition at line 122 of file bsimplex.H.
References Bsimplex::find_data().

SimplexData* Bsimplex::find_data ( uint key ) const [inline, inherited]

Definition at line 118 of file bsimplex.H.
References Bsimplex::_data_list, and SimplexDataList::get_item().
Referenced by Bsimplex::add_simplex_data(), Bsimplex::find_data(), and UVdata::lookup().

uint Bsimplex::flag ( ) const [inline, inherited]

Definition at line 91 of file bsimplex.H.
References Bsimplex::_flag, and Bsimplex::FLAG_MASK.
Referenced by UnreachedSimplexFilter::accept(), SimplexFlagFilter::accept(), add_face(), TriStrip::backup_strip(), both_set(), TriStrip::build(), check_partner(), demote(), BMESH::get_components(), Bface_list::get_edges(), BMESH::get_enclosed_verts(), get_parent_faces(), Bface_list::get_verts(), Bface_list::grow_connected(), BMESH::grow_mesh_equivalence_class(), BMESH::grow_oriented_face_lists(), has_unmarked_face(), Bsimplex::inc_flag(), is_claimed(), is_cleared(), is_marked(), mark_pushed_faces(), promote(), screen(), BMESH::split_components(), try_append(), try_get_edge(), try_get_face(), and try_get_nm_edge().

uint Bsimplex::generate_key ( ) [protected, inherited]

Definition at line 20 of file bsimplex.C.
References Bsimplex::_key, Bsimplex::_table, err_msg(), and ARRAY< T >::num().

void Bvert::geometry_changed ( ) [virtual]

Reimplemented from Bsimplex.
Reimplemented in Lvert.
Definition at line 569 of file bvert.C.
References _adj, Bsimplex::geometry_changed(), get_all_faces(), and ARRAY< T >::num().
Referenced by Lvert::geometry_changed(), and set_loc().

CBedge_list& Bvert::get_adj ( ) const [inline]

Definition at line 51 of file bvert.H.
References _adj.
Referenced by FoldVertFilter::accept(), and BMESH::merge_vertex().

Bface_list Bvert::get_all_faces ( ) const [inline]

Definition at line 981 of file bface.H.
Referenced by geometry_changed(), get_all_faces(), neighbors(), and norm().

void Bvert::get_all_faces ( ARRAY< Bface * > & ret ) const

Definition at line 397 of file bvert.C.
References add_uniquely(), degree(), e(), get_all_faces(), get_faces(), and is_manifold().
Referenced by ToonTexCB::faceCB(), XToonStripCB::faceCB(), BMESH::merge_vertex(), and UVdata::split().

Bedge_list Bvert::get_ccw_edges ( ) const

Definition at line 141 of file bvert.C.
References _adj, border_degree(), ccw_face(), degree(), e(), err_msg(), leading_ccw_edge(), ARRAY< T >::num(), Bface::opposite_edge(), and Bedge::other_vertex().
Referenced by get_ccw_nbrs(), and order_edges_ccw().

Bvert_list Bvert::get_ccw_nbrs ( ) const

Definition at line 187 of file bvert.C.
References get_ccw_edges(), and get_nbrs().
Referenced by LoopLoc::limit_normal().

Bface * Bvert::get_face ( ) const [virtual]

Implements Bsimplex.
Definition at line 482 of file bvert.C.
References _adj, e(), and ARRAY< T >::num().
Referenced by get_patch(), UVdata::get_uv(), UVdata::handle_subdiv_calc(), and leading_faces().

Bface_list Bvert::get_faces ( ) const [inline]

Definition at line 989 of file bface.H.
Referenced by face_degree(), get_all_faces(), get_faces(), get_normals(), get_q_faces(), local_search(), num_tris(), set_normal(), star_area(), and star_sum_angles().

void Bvert::get_faces ( ARRAY< Bface * > & ret ) const

Definition at line 324 of file bvert.C.
References _adj, get_faces(), get_manifold_edges(), and is_manifold().
Referenced by VertUVTexture::draw(), UVdata::handle_subdiv_calc(), StripTexCoordsCB2::send_d(), StripTexCoordsCB3::send_d(), BMESH::split_faces(), and BMESH::split_tris().

Bedge_list Bvert::get_manifold_edges ( ) const [inline]

Definition at line 206 of file bvert.H.
Referenced by area_centroid(), centroid(), get_faces(), get_p_nbrs(), get_primary_nbrs(), get_q_nbrs(), get_quad_faces(), next_border_edge_cw(), qr_centroid(), Lvert::set_mask(), and strong_edges().

void Bvert::get_manifold_edges ( ARRAY< Bedge * > & ret ) const

Definition at line 285 of file bvert.C.
References _adj, ARRAY< T >::clear(), Bedge_list::clear_flag02(), SimplexArray< L, T >::filter(), is_manifold(), mark_pushed_faces(), ARRAY< T >::num(), and try_get_nm_edge().
Referenced by CatmullClarkCalc< Wpt >::crease_centroid(), HybridCalc< Wpt >::hybrid_centroid(), CatmullClarkCalc< Wpt >::smooth_subdiv_val(), HybridCalc< Wpt >::subdiv_val(), CatmullClarkCalc< Wpt >::subdiv_val(), and CatmullClarkCalc< Wpt >::vcentroid().

void Bvert::get_nbrs ( ARRAY< Bvert * > & nbrs ) const

Definition at line 212 of file bvert.C.
References _adj, and get_nbrs().

Bvert_list Bvert::get_nbrs ( CBedge_list & edges ) const

Definition at line 111 of file bvert.C.
References nbr(), and ARRAY< T >::num().
Referenced by get_ccw_nbrs(), get_nbrs(), get_p_nbrs(), and get_primary_nbrs().

void Bvert::get_normals ( ARRAY< Wvec > & norms ) const

for a vertex with adjacent crease edges, returns 1 normal for each set of adjacent faces bounded by crease edges:
Definition at line 545 of file bvert.C.
References ARRAY< T >::add_uniquely(), ARRAY< T >::clear(), get_faces(), is_crease(), norm(), and ARRAY< T >::num().
Referenced by VertNormalsTexture::draw().

ARRAY<Bvert*> Bvert::get_p_nbrs ( ) const [inline]

Definition at line 227 of file bvert.H.
Referenced by p_degree().

void Bvert::get_p_nbrs ( ARRAY< Bvert * > & nbrs ) const

Definition at line 226 of file bvert.C.
References get_manifold_edges(), and get_nbrs().

void Bvert::get_primary_nbrs ( ARRAY< Bvert * > & nbrs ) const

Definition at line 220 of file bvert.C.
References get_manifold_edges(), and get_nbrs().

void Bvert::get_q_faces ( ARRAY< Bface * > & ret ) const

Definition at line 360 of file bvert.C.
References add_quad_partners(), and get_faces().

void Bvert::get_q_nbrs ( ARRAY< Bvert * > & q ) const

Definition at line 70 of file bvert.C.
References ccw_face(), ARRAY< T >::clear(), get_manifold_edges(), Bface::is_quad(), ARRAY< T >::num(), and Bface::quad_opposite_vert().
Referenced by HybridCalc< Wpt >::hybrid_centroid().

void Bvert::get_quad_faces ( ARRAY< Bface * > & ret ) const

Definition at line 436 of file bvert.C.
References _adj, get_manifold_edges(), and is_manifold().
Referenced by num_quads(), and CatmullClarkCalc< Wpt >::smooth_centroid().

bool Bvert::has_color ( ) const [inline]

Definition at line 48 of file bvert.H.
References Bsimplex::is_set(), and VALID_COLOR_BIT.
Referenced by VertColorStripCB::faceCB(), SmoothShadeStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), StripTexCoordsCB2::faceCB(), FlatShadeStripCB::faceCB(), StripTexCoordsCB3::faceCB(), CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB(), BMESH::operator=(), Lvert::update_subdivision(), Ledge::update_subdivision(), and BMESH::write_colors().

void Bsimplex::inc_flag ( uint i ) [inline, inherited]

Definition at line 96 of file bsimplex.H.
References Bsimplex::flag(), Bsimplex::FLAG_BITS, and Bsimplex::set_flag().

bool Bvert::is_adjacent ( CBvert * v ) const [inline]

Definition at line 177 of file bvert.H.
References _adj, and ARRAY< T >::num().
Referenced by BMESH::try_collapse_edge().

bool Bvert::is_border ( ) const [inline]

Definition at line 323 of file bvert.H.
References border_degree().
Referenced by Lvert::set_mask(), and BMESH::try_collapse_edge().

bool Bsimplex::is_clear ( uint b ) const [inline, inherited]

Definition at line 101 of file bsimplex.H.
References Bsimplex::is_set().
Referenced by BitClearSimplexFilter::accept(), LMESH::add_dirty_vert(), Bface::is_primary(), Lface::subdiv_dirty(), Lvert::update_subdivision(), and Ledge::update_subdivision().

bool Bvert::is_crease ( ) const [inline]

Definition at line 334 of file bvert.H.
References CREASE_BIT, crease_degree(), Bsimplex::is_set(), and VALID_CREASE_BIT.
Referenced by get_normals(), Lvert::set_mask(), and Bface::vert_normal().

bool Bvert::is_crease_end ( ) const [inline]

Definition at line 325 of file bvert.H.
References crease_degree().
Referenced by Bedge::is_crease_end().

bool Bvert::is_front_facing ( ) const [inline]

returns true if surface normal (ignoring creases) points toward camera:

Definition at line 353 of file bvert.H.
References eye_local(), loc(), and norm().
Referenced by is_good().

bool Bvert::is_manifold ( ) const [inline]

Definition at line 358 of file bvert.H.
References is_non_manifold().
Referenced by get_all_faces(), get_faces(), get_manifold_edges(), get_quad_faces(), LoopLoc::limit_normal(), p_degree(), CatmullClarkCalc< Wpt >::smooth_subdiv_val(), HybridCalc< Wpt >::subdiv_val(), and CatmullClarkCalc< Wpt >::subdiv_val().

bool Bvert::is_non_manifold ( ) const [inline]

Definition at line 357 of file bvert.H.
References multi_degree().
Referenced by is_manifold(), and next_border_edge_cw().

bool Bvert::is_polyline_end ( ) const [inline]

Definition at line 324 of file bvert.H.
References polyline_degree().
Referenced by BMESH::build_polyline_strips(), and Bedge::is_polyline_end().

bool Bsimplex::is_selected ( ) const [inline, inherited]

Definition at line 114 of file bsimplex.H.
References Bsimplex::is_set(), and Bsimplex::SELECTED_BIT.
Referenced by SelectedSimplexFilter::accept(), MeshGlobal::deselect(), MeshGlobal::select(), MeshGlobal::toggle_select(), Bedge::~Bedge(), Bface::~Bface(), and ~Bvert().

bool Bsimplex::is_set ( uint b ) const [inline, inherited]

Definition at line 100 of file bsimplex.H.
References Bsimplex::_flag, and Bsimplex::mask().
Referenced by BitSetSimplexFilter::accept(), Lface::allocate_subdiv_elements(), Ledge::allocate_subdiv_elements(), Lvert::allocate_subdiv_vert(), Bface::area(), Lface::delete_subdiv_elements(), Ledge::delete_subdiv_elements(), Lvert::delete_subdiv_vert(), Lvert::displaced_loc(), Ledge::do_swap(), Bface::front_facing(), has_color(), Bface::is_bad(), Bsimplex::is_clear(), Bedge::is_convex(), is_crease(), Bedge::is_crease(), Bedge::is_patch_boundary(), Bsimplex::is_selected(), is_stressed(), Bedge::is_weak(), Lface::make_primary(), Lface::make_secondary(), Lvert::mark_dirty(), Lvert::mask_changed(), norm(), Bface::norm(), order_edges_ccw(), UVMapping::recurse(), UVMapping::recurse_wrapping(), LMESH::rem_dirty_vert(), Lface::reverse(), Lface::set_layer(), Lface::set_subdiv_elements(), Ledge::set_subdiv_elements(), Lvert::set_subdiv_vert(), Lvert::subdiv_mask(), and Ledge::subdiv_mask().

bool Bvert::is_sharp_point ( double sharpness = M_PI/2 )

Definition at line 645 of file bvert.C.
References star_sum_angles().

bool Bvert::is_stressed ( ) const [inline]

Definition at line 327 of file bvert.H.
References Bsimplex::is_set(), STRESSED_BIT, stressed_degree(), and VALID_STRESSED_BIT.

double Bvert::k1 ( ) const

Definition at line 882 of file bvert.C.
References Bsimplex::_mesh, BMESH::curvature(), and BMESHcurvature_data::k1().
Referenced by ToonTexCB::faceCB(), MSLDStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), and CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB().

double Bvert::k2 ( ) const

Definition at line 890 of file bvert.C.
References Bsimplex::_mesh, BMESH::curvature(), and BMESHcurvature_data::k2().
Referenced by ToonTexCB::faceCB(), MSLDStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), and CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB().

uint Bsimplex::key ( ) const [inline, inherited]

Definition at line 72 of file bsimplex.H.
References Bsimplex::_key.
Referenced by ColorIDStripCB::edgeCB(), ColorIDStripCB::faceCB(), and ColorIDStripCB::vertCB().

CWpt& Bvert::loc ( ) const [inline]

position (location)

Definition at line 40 of file bvert.H.
References _loc.
Referenced by FoldVertFilter::accept(), Bface::angle(), area_centroid(), Bface::bc2pos(), Bedge::bc2pos(), bface_bbox(), OctreeNode::build_octree(), centroid(), Bface::centroid(), check(), compute_edge_vectors(), compute_initial_vertex_coord_sys(), GLSphirTexCoordGen::compute_uv(), Bface::contains(), dist(), VertUVTexture::draw(), VertNormalsTexture::draw(), draw_edge(), draw_face(), GLStripCB::edgeCB(), ColorIDStripCB::edgeCB(), eye_vec(), ToonTexCB::faceCB(), VertNormStripCB::faceCB(), GLStripCB::faceCB(), StripColorCB::faceCB(), ToonTexCB_1D::faceCB(), VertColorStripCB::faceCB(), SmoothShadeStripCB::faceCB(), MSLDStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), StripTexCoordsCB2::faceCB(), XToonStripCB::faceCB(), FlatShadeStripCB::faceCB(), StripTexCoordsCB3::faceCB(), CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB(), ColorIDStripCB::faceCB(), Bface::front_facing(), Bface::get_quad_pts(), HybridLoc::get_val(), CatmullClarkLoc::get_val(), LoopLoc::get_val(), Hybrid2Loc::get_val(), ZcrossPath::has_sil(), Bedge::interp(), is_front_facing(), LoopLoc::limit_normal(), Bedge::line(), Bedge::mid_pt(), nbr_loc(), Bface::nearest_pt(), VertFrame::o(), BMESH::operator=(), Bface::plane(), Bface::project_barycentric(), Bedge::project_barycentric(), Bvert_list::pts(), BMESH::put_vertices(), qinv_loc(), qr_centroid(), qr_delt(), Bface::quad_centroid(), Bface::quad_uv2loc(), BMESH::remove_duplicate_vertices(), Bedge::set_convex(), Bface::set_normal(), ZcrossPath::sil_walk_search(), Lvert::smooth_loc_from_parent(), UVdata::split(), BMESH::split_faces(), BMESH::split_tris(), ZcrossPath::start_sil(), Bedge::swapable(), BarycentricCoord::to_Wpt(), BMESH::triangulate(), Lvert::update_subdivision(), Bedge::vec(), GLStripCB::vertCB(), ColorIDStripCB::vertCB(), view_intersect(), visit(), Bface::volume_el(), weighted_vnorm(), Bedge::which_side(), BMESH::write_vertices(), and write_verts().

bool Bvert::local_search ( Bsimplex *& end,

Wvec & final_bc,

CWpt & target,

mlib::Wpt & reached,

Bsimplex * repeater = 0,

int iters = 30

) [virtual]

Implements Bsimplex.
Definition at line 817 of file bvert.C.
References _loc, get_faces(), and ARRAY< T >::num().

static Bsimplex* Bsimplex::lookup ( uint k ) [inline, static, inherited]

Definition at line 73 of file bsimplex.H.
References Bsimplex::_table, and ARRAY< T >::num().
Referenced by VisRefImage::debug(), and IDRefImage::simplex().

Bedge* Bvert::lookup_edge ( CBvert * v ) const [inline]

Definition at line 167 of file bvert.H.
References _adj, ARRAY< T >::contains(), and ARRAY< T >::num().
Referenced by BMESH::add_edge(), BMESH::add_quad(), Lface::allocate_subdiv_elements(), Bface::check(), Bvert_list::forms_closed_chain(), Bface::get_quad_edges(), UVdata::get_quad_uvs(), Ledge::get_sub_faces(), get_subdiv_chain(), lookup_edge(), lookup_face(), Bface::opposite_quad_edge(), Bedge::redef2(), Bface::redefine(), Bedge::redefine(), Bedge::set_new_vertices(), BMESH::split_tris(), and Bedge::swapable().

static uint Bsimplex::mask ( uint b ) [inline, static, protected, inherited]

Definition at line 268 of file bsimplex.H.
Referenced by Bsimplex::clear_bit(), Bsimplex::is_set(), and Bsimplex::set_bit().

BMESH* Bsimplex::mesh ( ) const [inline, inherited]

Definition at line 68 of file bsimplex.H.
References Bsimplex::_mesh.
Referenced by MeshSimplexFilter::accept(), BMESH::add_edge(), BMESH::add_face(), UVMapping::compute_limits(), UVMapping::compute_mapping(), UVMapping::compute_wrapping(), Ledge::delete_subdiv_elements(), Lvert::delete_subdiv_vert(), eye_local(), ToonTexCB::faceCB(), XToonStripCB::faceCB(), get_ctrl_face(), get_cur_sub_edges(), get_cur_sub_faces(), get_cur_sub_vert(), VisRefImage::get_edit_face(), BMESH::get_enclosed_verts(), get_lmesh(), get_mesh(), get_parent_face(), get_parent_simplex(), TriStrip::get_strips(), VisRefImage::get_sub_face(), get_subdiv_chain(), BMESH::intersect(), Lvert::lmesh(), Lface::lmesh(), Ledge::lmesh(), BMESHray::mesh(), normalized_pix_area(), Bface_list::reachable_faces(), Ledge::rel_level(), LMESH::remove_edge(), LMESH::remove_face(), LMESH::remove_vertex(), MeshGlobal::select(), Lvert::set_subdiv_vert(), BMESH::split_faces(), subdiv_level(), SimpleUVCalc::subdiv_val(), and toggle_crease().

double Bvert::min_dot ( ) const [inline]

Definition at line 273 of file bvert.H.
References degree(), e(), and min().

double Bvert::min_edge_len ( ) const [inline]

Definition at line 281 of file bvert.H.
References _adj, and Bedge_list::min_edge_len().

int Bvert::multi_degree ( ) const [inline]

Definition at line 319 of file bvert.H.
References degree().
Referenced by is_non_manifold().

Bvert* Bvert::nbr ( CBedge * e ) const [inline]

Definition at line 126 of file bvert.H.
References Bedge::other_vertex().

Bvert* Bvert::nbr ( int k ) const [inline]

Definition at line 122 of file bvert.H.
References _adj, and ARRAY< T >::valid_index().
Referenced by CatmullClarkCalc< Wpt >::crease_centroid(), BMESH::get_enclosed_verts(), get_nbrs(), get_nbrs(), BMESH::grow_mesh_equivalence_class(), is_near_tri(), Lvert::lv(), nbr_loc(), BMESH::split_faces(), and BMESH::try_collapse_edge().

Wpt Bvert::nbr_loc ( CBedge * e ) const [inline]

Definition at line 136 of file bvert.H.
References loc(), and nbr().

Wpt Bvert::nbr_loc ( int k ) const [inline]

Definition at line 135 of file bvert.H.
References loc(), and nbr().
Referenced by area_centroid(), centroid(), and qr_centroid().

NDCZpt Bvert::ndc ( ) const

NDCZ position.

Definition at line 58 of file bvert.C.
References _loc, Bsimplex::_mesh, and BMESH::obj_to_ndc().
Referenced by BMESH::get_enclosed_verts(), Bface::ndc_area(), Bface::ndc_centroid(), Bface::ndc_contains(), Bedge::ndc_intersect(), Bface::ndc_quad_centroid(), Bface::nearest_pt_ndc(), Bedge::nearest_pt_ndc(), Bface::project_barycentric_ndc(), and Bedge::view_intersect().

virtual bool Bsimplex::near_point ( CNDCpt & p,

mlib::Wpt & hit

) const [inline, virtual, inherited]

Definition at line 182 of file bsimplex.H.
References Bsimplex::view_intersect().

virtual Wpt Bsimplex::nearest_pt ( mlib::CWpt & p ) const [inline, virtual, inherited]

Definition at line 232 of file bsimplex.H.
References Bsimplex::nearest_pt().

virtual Wpt Bsimplex::nearest_pt ( mlib::CWpt & p,

mlib::Wvec & bc

) const [inline, virtual, inherited]

Definition at line 228 of file bsimplex.H.
References Bsimplex::nearest_pt().

virtual Wpt Bvert::nearest_pt ( mlib::CWpt & p,

mlib::Wvec & bc,

bool & is_on_simplex

) const [virtual]

Implements Bsimplex.

NDCpt Bvert::nearest_pt_ndc ( mlib::CNDCpt & p,

mlib::Wvec & bc,

int & is_on_simplex

) const [virtual]

Implements Bsimplex.
Definition at line 846 of file bvert.C.
References _loc.

Bsimplex_list Bvert::neighbors ( ) const [virtual]

Implements Bsimplex.
Definition at line 86 of file bvert.C.
References _adj, get_all_faces(), j, and ARRAY< T >::num().

Bedge * Bvert::next_border_edge_cw ( )

Definition at line 382 of file bvert.C.
References _adj, get_manifold_edges(), is_non_manifold(), and next_border_edge_cw().
Referenced by next_border_vert_cw().

Bvert* Bvert::next_border_vert_cw ( ) [inline]

Definition at line 247 of file bvert.H.
References next_border_edge_cw(), and Bedge::other_vertex().

Wvec Bvert::norm ( CSimplexFilter & f ) const

return a normal WRT faces accepted by the given filter:

Definition at line 524 of file bvert.C.
References compute_normal(), SimplexArray< L, T >::filter(), and get_all_faces().

CWvec& Bvert::norm ( ) const [inline]

normal -- i.e. unit length average of adjacent faces: (uses angle-weighted face normals)
Definition at line 69 of file bvert.H.
References _norm, Bsimplex::is_set(), and VALID_NORMAL_BIT.
Referenced by FoldVertFilter::accept(), BMESHcurvature_data::compute_face_curvatures(), compute_initial_vertex_coord_sys(), BMESHcurvature_data::diagonalize_vertex_curvatures(), VertUVTexture::draw(), eye_vec_dot_norm(), get_normals(), is_front_facing(), StripTexCoordsCB2::send_d(), StripTexCoordsCB3::send_d(), vert_normal(), Bface::vert_normal(), view_intersect(), wnorm(), and write_verts().

void Bvert::normal_changed ( ) [virtual]

Reimplemented from Bsimplex.
Reimplemented in Lvert.
Definition at line 607 of file bvert.C.
References Bsimplex::clear_bit(), Bsimplex::normal_changed(), VALID_NORMAL_BIT, and VALID_STRESSED_BIT.
Referenced by degree_changed(), Bface::geometry_changed(), and Lvert::normal_changed().

void Bsimplex::notify_split ( Bsimplex * new_simp ) [virtual, inherited]

Reimplemented in Bedge.
Definition at line 39 of file bsimplex.C.
References Bsimplex::_data_list, and SimplexDataList::notify_split().
Referenced by Bedge::notify_split(), BMESH::split_edge(), and BMESH::split_face().

void Bsimplex::notify_xform ( CWtransf & xf ) [virtual, inherited]

Definition at line 52 of file bsimplex.C.
References Bsimplex::_data_list, and SimplexDataList::notify_simplex_xformed().
Referenced by transform().

int Bvert::num_quads ( ) const

Definition at line 450 of file bvert.C.
References get_quad_faces(), and ARRAY< T >::num().
Referenced by HybridCalc< Wpt >::subdiv_val().

int Bvert::num_tris ( ) const

Definition at line 459 of file bvert.C.
References get_faces(), and ARRAY< T >::num().
Referenced by HybridCalc< Wpt >::subdiv_val().

void Bvert::offset_loc ( CWvec & v ) [inline]

Definition at line 99 of file bvert.H.
References _loc, and set_loc().

virtual bool Bsimplex::on_face ( const Bface * f ) const [pure virtual, inherited]

Referenced by IDRefImage::is_face_visible().

bool Bvert::on_face ( CBface * f ) const [virtual]

Definition at line 492 of file bvert.C.
References Bface::contains().

void Bvert::operator+= ( Bedge * e )

Definition at line 34 of file bvert.C.
References _adj, crease_changed(), degree_changed(), and Bedge::is_crease().

int Bvert::operator-= ( Bedge * e )

Definition at line 43 of file bvert.C.
References _adj, crease_changed(), degree_changed(), err_msg(), and Bedge::is_crease().

bool Bvert::order_edges_ccw ( )

Definition at line 193 of file bvert.C.
References _adj, degree(), get_ccw_edges(), Bsimplex::is_set(), ARRAY< T >::num(), Bsimplex::set_bit(), and VALID_CCW_BIT.

int Bvert::p_degree ( ) const [inline]

Definition at line 233 of file bvert.H.
References degree(), get_p_nbrs(), is_manifold(), and ARRAY< T >::num().
Referenced by HybridCalc< Wpt >::subdiv_val().

Wvec Bvert::pdir1 ( ) const

Definition at line 898 of file bvert.C.
References Bsimplex::_mesh, BMESH::curvature(), and BMESHcurvature_data::pdir1().
Referenced by MSLDStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), and CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB().

Wvec Bvert::pdir2 ( ) const

Definition at line 906 of file bvert.C.
References Bsimplex::_mesh, BMESH::curvature(), and BMESHcurvature_data::pdir2().
Referenced by MSLDStripCB::faceCB(), LineDrawingGLSLMode::StripCB::faceCB(), LineDrawingVprogFprogNoSSDMode::StripCB::faceCB(), and CurvatureARBvpARBfpMultiTextureMode::StripCB::faceCB().

PIXEL Bvert::pix ( ) const [inline]

position in mlib::PIXEL coords

Definition at line 43 of file bvert.H.
References wloc().
Referenced by Bedge::pix_line().

int Bvert::polyline_degree ( ) const [inline]

Definition at line 317 of file bvert.H.
References degree().
Referenced by is_polyline_end().

virtual void Bvert::project_barycentric ( CWpt & ,

mlib::Wvec & bc

) const [inline, virtual]

Implements Bsimplex.
Definition at line 418 of file bvert.H.
References mlib::Vec3< V >::set().

Wpt& Bsimplex::project_to_simplex ( mlib::CWpt & pos,

mlib::Wpt & ret

) [inline, inherited]

Definition at line 152 of file bsimplex.H.
References Bsimplex::bc2pos(), Bsimplex::clamp_barycentric(), and Bsimplex::project_barycentric().

Wpt Bvert::qr_centroid ( ) const

Definition at line 720 of file bvert.C.
References Bedge_list::avg_len(), ccw_face(), e(), ARRAY< T >::empty(), get_manifold_edges(), Bface::is_quad(), Bedge::is_strong(), Bedge::length(), loc(), nbr_loc(), ARRAY< T >::num(), and Bface::quad_opposite_vert().
Referenced by qr_delt().

Wvec Bvert::qr_delt ( ) const [inline]

Definition at line 297 of file bvert.H.
References loc(), and qr_centroid().

void Bsimplex::rem_simplex_data ( SimplexData * sd ) [inline, inherited]

Definition at line 126 of file bsimplex.H.
References Bsimplex::_data_list, and ARRAY< T >::rem().
Referenced by SimplexData::set().

void Bsimplex::set_bit ( uint b,

int x = 1

) [inline, inherited]

Definition at line 104 of file bsimplex.H.
References Bsimplex::_flag, Bsimplex::clear_bit(), and Bsimplex::mask().
Referenced by LMESH::add_dirty_vert(), OBJReaderImpl::add_face(), add_poly(), BMESH::add_quad(), Lface::allocate_subdiv_elements(), Ledge::allocate_subdiv_elements(), Lvert::allocate_subdiv_vert(), Ledge::claim_child(), color_changed(), Lvert::displaced_loc(), Bface::make_secondary(), BMESH::operator=(), order_edges_ccw(), UVMapping::recurse(), UVMapping::recurse_wrapping(), LMESH::remove_vertex(), MeshGlobal::select(), set_color(), Bedge::set_convex(), Lvert::set_mask(), Ledge::set_mask(), set_norm(), set_normal(), Bface::set_normal(), Bedge::set_patch_boundary(), Lface::set_subdiv_elements(), Ledge::set_subdiv_elements(), Lvert::set_subdiv_vert(), BMESH::set_weak_edge(), Lvert::update_subdivision(), and Ledge::update_subdivision().

void Bvert::set_color ( CCOLOR & c,

double a = 1

) [inline]

Definition at line 103 of file bvert.H.
References _alpha, _color, color_changed(), Bsimplex::set_bit(), and VALID_COLOR_BIT.
Referenced by BMESH::operator=(), BMESH::read_colors(), Lvert::update_subdivision(), and Ledge::update_subdivision().

void Bsimplex::set_flag ( uchar b = 1 ) [inline, inherited]

Definition at line 93 of file bsimplex.H.
References Bsimplex::_flag, and Bsimplex::clear_flag().
Referenced by add_face(), claim_face(), Bface_list::get_edges(), BMESH::get_enclosed_verts(), get_parent_faces(), Bface_list::get_verts(), Bface_list::grow_connected(), BMESH::grow_mesh_equivalence_class(), BMESH::grow_oriented_face_lists(), Bsimplex::inc_flag(), BMESH::kill_component(), mark_face(), mark_pushed_faces(), screen(), BMESH::split_components(), try_append(), try_get_edge(), try_get_face(), and try_get_nm_edge().

void Bvert::set_loc ( CWpt & p ) [inline]

Definition at line 98 of file bvert.H.
References _loc, and geometry_changed().
Referenced by Lvert::fit_subdiv_offset(), offset_loc(), Lvert::set_offset(), Lvert::set_subdiv_base_loc(), transform(), and Lvert::update_subdivision().

void Bsimplex::set_mesh ( BMESH * mesh ) [inline, inherited]

Definition at line 67 of file bsimplex.H.
References Bsimplex::_mesh.
Referenced by BMESH::add_edge(), BMESH::add_face(), and BMESH::add_vertex().

void Bvert::set_norm ( Wvec n ) [inline]

Definition at line 79 of file bvert.H.
References _norm, mlib::Vec3< V >::normalized(), Bsimplex::set_bit(), and VALID_NORMAL_BIT.
Referenced by OBJReaderImpl::set_vert_normals().

void Bvert::set_normal ( ) [protected]

Definition at line 509 of file bvert.C.
References _adj, _norm, SimplexArray< L, T >::all_satisfy(), compute_normal(), get_faces(), Bsimplex::set_bit(), and VALID_NORMAL_BIT.

double Bvert::star_area ( ) const

Definition at line 631 of file bvert.C.
References get_faces(), and ARRAY< T >::num().

virtual void Bvert::star_changed ( ) [inline, virtual]

Definition at line 368 of file bvert.H.
References Bsimplex::clear_bit(), and VALID_CCW_BIT.
Referenced by degree_changed(), Bedge::operator+=(), and Bedge::operator-=().

double Bvert::star_sum_angles ( ) const

Definition at line 617 of file bvert.C.
References get_faces(), and ARRAY< T >::num().
Referenced by is_sharp_point().

int Bvert::stressed_degree ( ) const [inline]

Definition at line 318 of file bvert.H.
References degree().
Referenced by is_stressed().

Bedge_list Bvert::strong_edges ( ) const [inline]

Definition at line 212 of file bvert.H.
References get_manifold_edges(), and Bedge_list::strong_edges().
Referenced by avg_strong_len().

void Bvert::transform ( CWtransf & xf ) [inline]

Definition at line 100 of file bvert.H.
References _loc, Bsimplex::notify_xform(), and set_loc().

bool Bvert::view_intersect ( CNDCpt & ,

Wpt & ,

double & ,

double & ,

Wvec & n

) const [virtual]

Implements Bsimplex.
Definition at line 784 of file bvert.C.
References Bsimplex::_mesh, mlib::Point3< P, V >::dist(), BMESH::inv_xform(), mlib::Vec3< V >::is_null(), loc(), norm(), mlib::Vec3< V >::normalized(), and wloc().

Bsimplex* Bsimplex::walk_to_target ( CWpt & target,

Wpt & near_pt,

Wvec & near_bc,

CSimplexFilter & filter = SimplexFilter()

) const [inline, inherited]

Definition at line 199 of file bsimplex.H.
References Bsimplex::nearest_pt(), and Bsimplex::walk_to_target().

Bsimplex* Bsimplex::walk_to_target ( CWpt & target,

CSimplexFilter & filter = SimplexFilter()

) const [inherited]

Referenced by Bsimplex::walk_to_target().

double Bvert::wdist ( CBvert * v ) [inline]

Distance to another vert (computed in world space):.

Definition at line 114 of file bvert.H.
References mlib::Point3< P, V >::dist(), and wloc().

Wpt Bvert::wloc ( ) const

mesh->xf * loc()

Definition at line 64 of file bvert.C.
References _loc, Bsimplex::_mesh, and BMESH::xform().
Referenced by closest_vert(), VertAttrib< UVpt, UVvec >::dFd(), ToonTexCB::faceCB(), ToonTexCB_1D::faceCB(), is_good(), pix(), BMESH::put_vertices(), GtexUtil::show(), GtexUtil::tri(), view_intersect(), Bedge::view_intersect(), wdist(), Bvert_list::wpts(), and BMESH::write_vertices().

Wvec Bvert::wnorm ( ) const

normal transformed to world space xf.inverse().transpose() * norm
Definition at line 533 of file bvert.C.
References Bsimplex::_mesh, BMESH::inv_xform(), and norm().

Friends And Related Function Documentation

Patch * get_ctrl_patch ( CBsimplex * s ) [related, inherited]

Similar to get_patch(CBsimplex*), but returns the control Patch.

Definition at line 662 of file patch.H.

Patch * get_patch ( CBsimplex * s ) [related, inherited]

Returns the Patch of a Bsimplex.

Note:
If you know it's actually a Bface, get_patch(CBface*) is faster.

Definition at line 639 of file patch.H.

STDdstream& operator<< ( STDdstream & d,

CBvert & v

) [friend]

Definition at line 385 of file bvert.H.

ostream& operator<< ( ostream & os,

CBvert & v

) [friend]

Definition at line 373 of file bvert.H.

STDdstream& operator>> ( STDdstream & d,

Bvert & v

) [friend]

Definition at line 388 of file bvert.H.

istream& operator>> ( istream & is,

Bvert & v

) [friend]

Definition at line 378 of file bvert.H.

Member Data Documentation

Bedge_list Bvert::_adj [protected]

Definition at line 441 of file bvert.H.
Referenced by avg_edge_len(), clear_flag02(), degree(), e(), geometry_changed(), get_adj(), get_ccw_edges(), get_face(), get_faces(), get_manifold_edges(), get_nbrs(), get_quad_faces(), is_adjacent(), Lvert::le(), lookup_edge(), min_edge_len(), nbr(), neighbors(), next_border_edge_cw(), operator+=(), operator-=(), order_edges_ccw(), set_normal(), ~Bvert(), and Lvert::~Lvert().

double Bvert::_alpha [protected]

Definition at line 443 of file bvert.H.
Referenced by alpha(), and set_color().

COLOR Bvert::_color [protected]

Definition at line 442 of file bvert.H.
Referenced by color(), and set_color().

SimplexDataList* Bsimplex::_data_list [protected, inherited]

Definition at line 248 of file bsimplex.H.
Referenced by Bsimplex::add_simplex_data(), Lface::allocate_subdiv_elements(), Ledge::allocate_subdiv_elements(), Lvert::allocate_subdiv_vert(), Bsimplex::data_list(), Bsimplex::find_data(), Bsimplex::geometry_changed(), Bsimplex::normal_changed(), Bsimplex::notify_split(), Bsimplex::notify_xform(), Bsimplex::rem_simplex_data(), Lface::set_subdiv_elements(), Ledge::set_subdiv_elements(), Lvert::set_subdiv_vert(), Lvert::update_subdivision(), Ledge::update_subdivision(), and Bsimplex::~Bsimplex().

uint Bsimplex::_flag [protected, inherited]

Definition at line 246 of file bsimplex.H.
Referenced by Bsimplex::clear_bit(), Bsimplex::clear_flag(), Bsimplex::flag(), Bsimplex::is_set(), Bsimplex::set_bit(), and Bsimplex::set_flag().

uint Bsimplex::_key [protected, inherited]

Definition at line 245 of file bsimplex.H.
Referenced by Bsimplex::generate_key(), and Bsimplex::key().

Wpt Bvert::_loc [protected]

Definition at line 440 of file bvert.H.
Referenced by Lvert::allocate_subdiv_vert(), bc2pos(), Lvert::displaced_loc(), loc(), local_search(), ndc(), nearest_pt_ndc(), offset_loc(), set_loc(), transform(), and wloc().

BMESH* Bsimplex::_mesh [protected, inherited]

Definition at line 247 of file bsimplex.H.
Referenced by Lface::bc_to_edit_level(), Lvert::cur_subdiv_vert(), curv_tensor(), dcurv_tensor(), diag_curv(), Bface::find_intersect_sim(), Bface::front_facing(), index(), Bface::index(), Bedge::index(), k1(), k2(), Bsimplex::mesh(), ndc(), pdir1(), pdir2(), Bsimplex::set_mesh(), view_intersect(), Bface::view_intersect(), Bedge::view_intersect(), wloc(), wnorm(), Bedge::~Bedge(), ~Bvert(), Ledge::~Ledge(), and Lvert::~Lvert().

Wvec Bvert::_norm [protected]

Definition at line 444 of file bvert.H.
Referenced by norm(), set_norm(), and set_normal().

Bsimplex::IDtable Bsimplex::_table [static, protected, inherited]

Definition at line 263 of file bsimplex.H.
Referenced by Bsimplex::generate_key(), and Bsimplex::lookup().

The documentation for this class was generated from the following files:

Generated on Mon Sep 18 11:44:40 2006 for jot by

1.4.4

Bvert Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes
